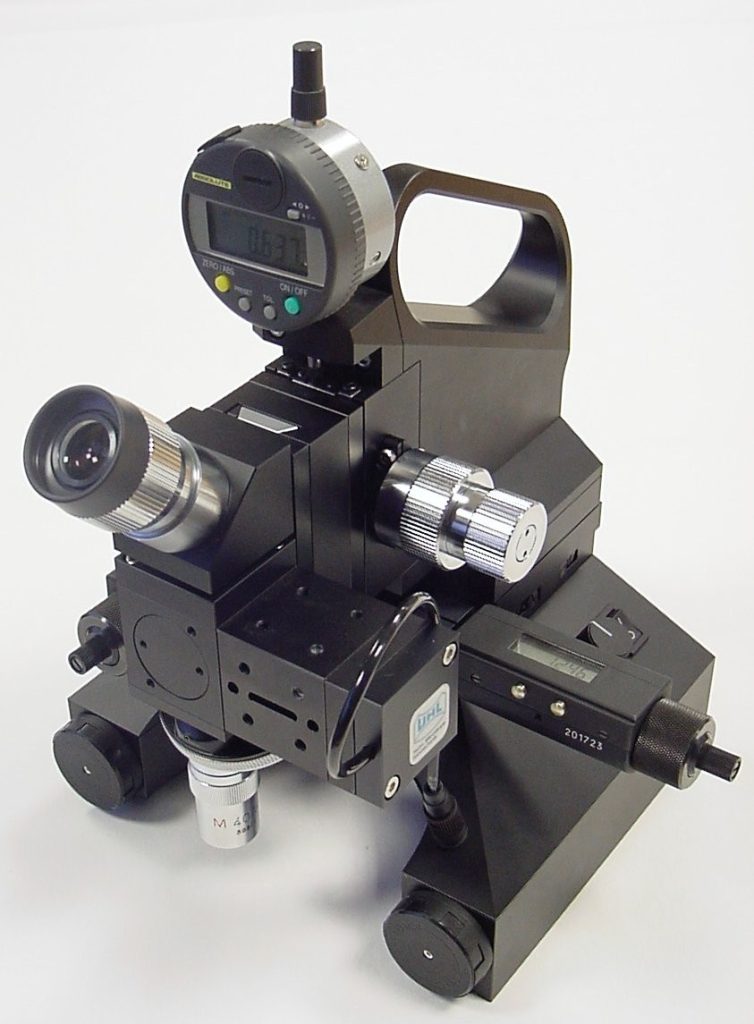

Walter Uhl Measuring Microscope TM2

Walter Uhl Measuring Microscope TM2
Walter Uhl Measuring Microscope TM2

Walter Uhl Measuring Microscope TM2

The portable measuring microscope TM2 is used for completely main power independent measurements of structure on rollers and flat or cylindric products with 3 digital measuring axises (x/y/z).

Ask a question
Description Specification Documentation

The portable measuring microscope TM2 is used to measure structues on rollers and flat or cylindric products with 3 digital axes (X/Y/Z) – self contained with integrated batteries.

  • solid v-block base for stable attachment
  • rubber coated surface protects the product against scratches and damage
  • eyepiece with diopter compensation and crosshair with concentric circles
  • coaxial coarse / fine movement for focussing
Magnifications Fields of view Measurement range Resolution
75x to 200x 2.6 mm to 0.35 mm X/Y 25 mm Z 12 mm 1 µm

Walter Uhl:  https://walteruhl.com/rokdownloads/Downloads/Brochures/Small%20Devices/UHL%20Rollscope%20TM2.pdf
