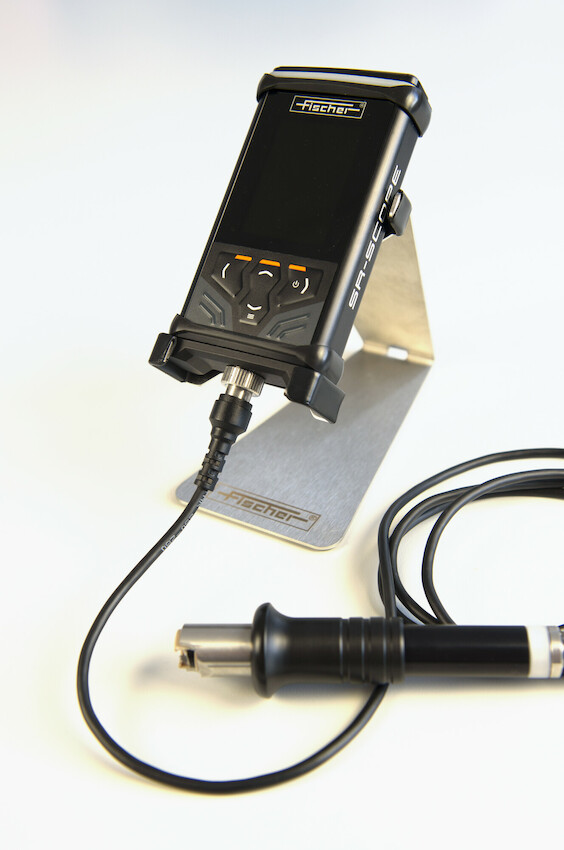

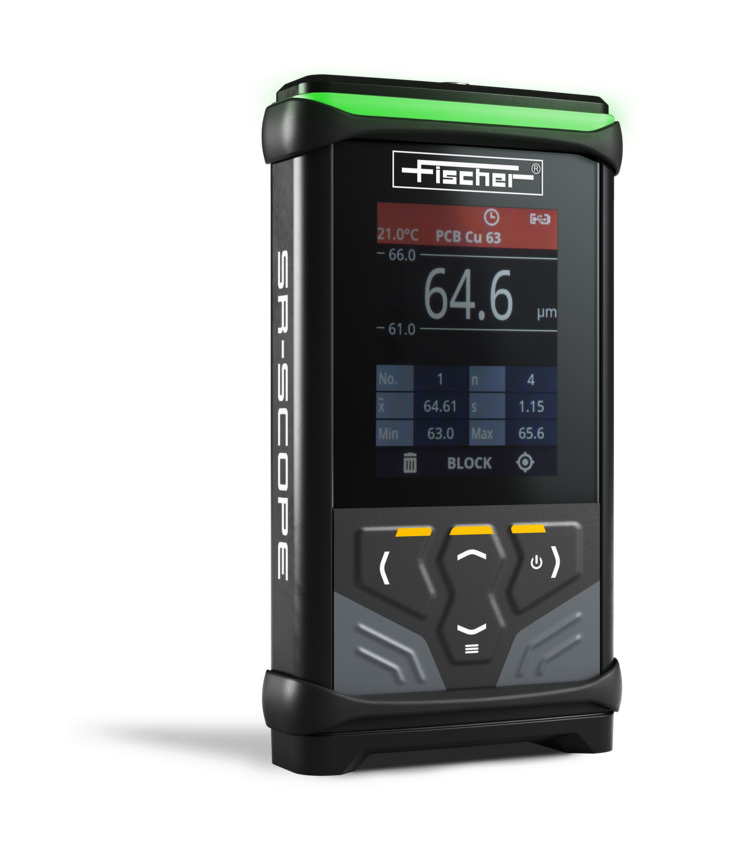

Helmut-Fischer SR-SCOPE® DMP®30

Robust and powerful handheld device for measuring copper thickness on PCBs.

Ask a question

Description Features Applications

The specialist for tactile copper thickness measurement.

Comprehensive functionalities are processed in a robust and high-quality housing with a modern design and accompanied with our intuitive FISIQ® T software. Our SR-SCOPE® DMP®30 is specially designed for measuring copper layers on PCBs. Check copper thickness precisely and reliably without the influence of underlying layers in your production process, in either incoming or outgoing goods.

Built to last.

Next level quality and durability thanks to all-aluminum housing

Perfect fit.

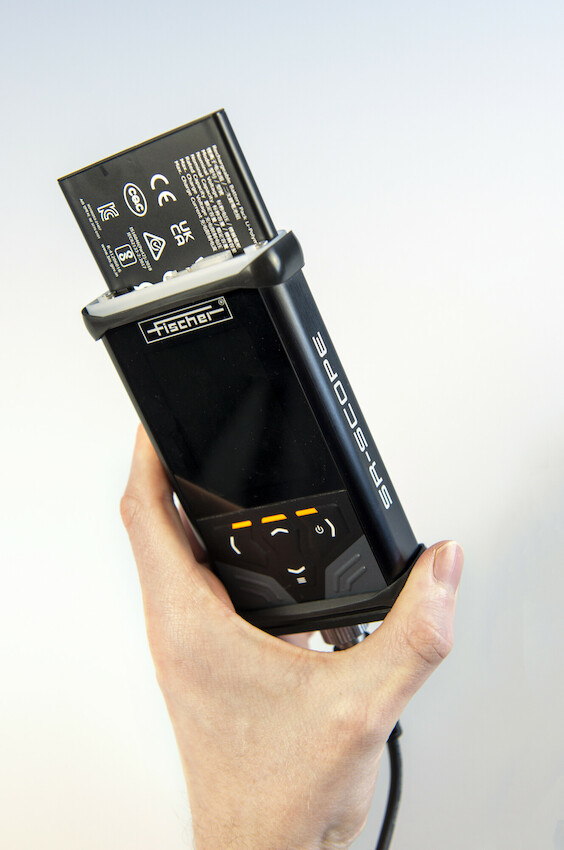

Measure 24/7 due to quick and easy battery change

Full measuring control.

Feedback via light, sound and vibration whether measured values are within tolerance within tolerance

Digital probe.

Fully digitized probe for the most demanding measurement tasks

Powerful software.

Automatic device recognition, easy data export and comprehensive reporting

Measuring method: Microresistivity
Coating thickness measurement using the electrical 4-point resistance method in accordance with DIN EN 14571
Measuring range: 0.5 – 10 µm or 5 – 120 µm
Measured value memory: 250,000 in 2,500 applications
Automatic device detection and easy data transfer via USB-C and Bluetooth
Robust aluminum housing with protection class IP64
Replaceable Li-ion battery for > 24 h operating time
Digital probe D-PCB available
Limit value monitoring via light, sound and vibration

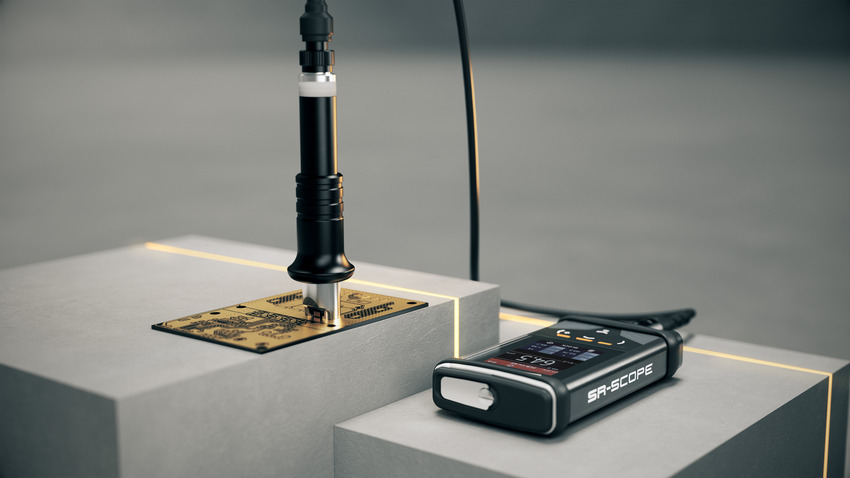

Measuring the copper thickness on the top side of PCBs and multilayers, without the insulated copper layers lying deeper influencing the measurement
Copper layer thicknesses from 0.5 – 10 µm and 5 – 120 µm
