Indication that the measurement exceeds the allowed limit
Result list test point identification
Integrated statistic view

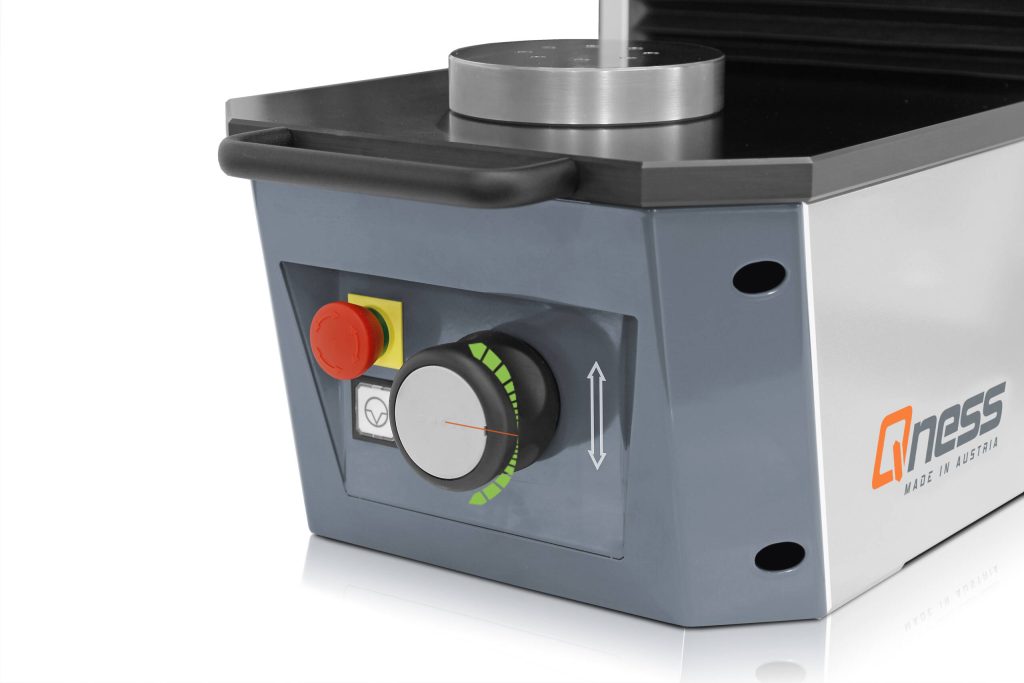

Dynamic Height AdjustmentThe compact Rockwell hardness tester in combination with the electronic movement control allows quick, accurate and sensitive positioning of the test head. Forceless, precise and collision-proof positioning of the head by turning the control knob (6mm/s) – even automatically with Q150A or A+, if required.
Working Room LightingThe integrated working room lighting allows an accurate positioning of the penetrator. (Standard on Rockwell Hardness tester Q150R)
Extended Test AreaThe entire Rockwell hardness tester range can be customized. Send us your specifications and you will immediately receive a customized solution that works
High Performance and Highly ProfessionalCompletely connected in high performance with the integrated Windows PC with SSD hard disk even in the base model Q150R in standard equipment. Customized data connection and integration of the Rockwell hardness tester into production lines possible up to request.
Configurable Protocol and Data Management
| Test method | Rockwell |
| Test force range | 1 – 250 kg (9.81 – 2450 N) |
| Test height / Throat depth | 260 mm / 180 mm |
| Test height extension (option) | 450 mm |
| Height adjustment | v max 6 mm/s |
| Software | Qpix T2R |
| Test anvil / Cross slide | 250 x 260 mm |

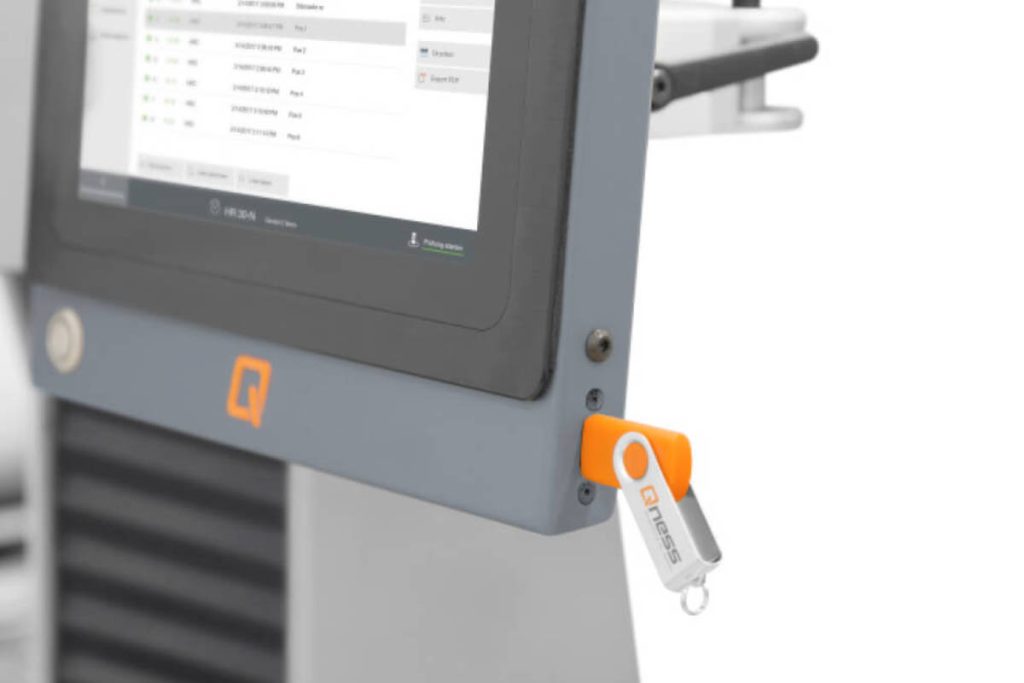

| Data interface | 3x USB, 1x Ethernet, 1x RS232 |
| Weight of basic machine | 95 kg |
| with Test height extension | 112 kg |
| Max. work piece weight | 100 kg |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 240 W |
Accessories and Options |
|
| General | Test anvils, Indenters |
