Check pipes economically with the Rockwell hardness tester Q150A/A+ according to the applicable API standards.

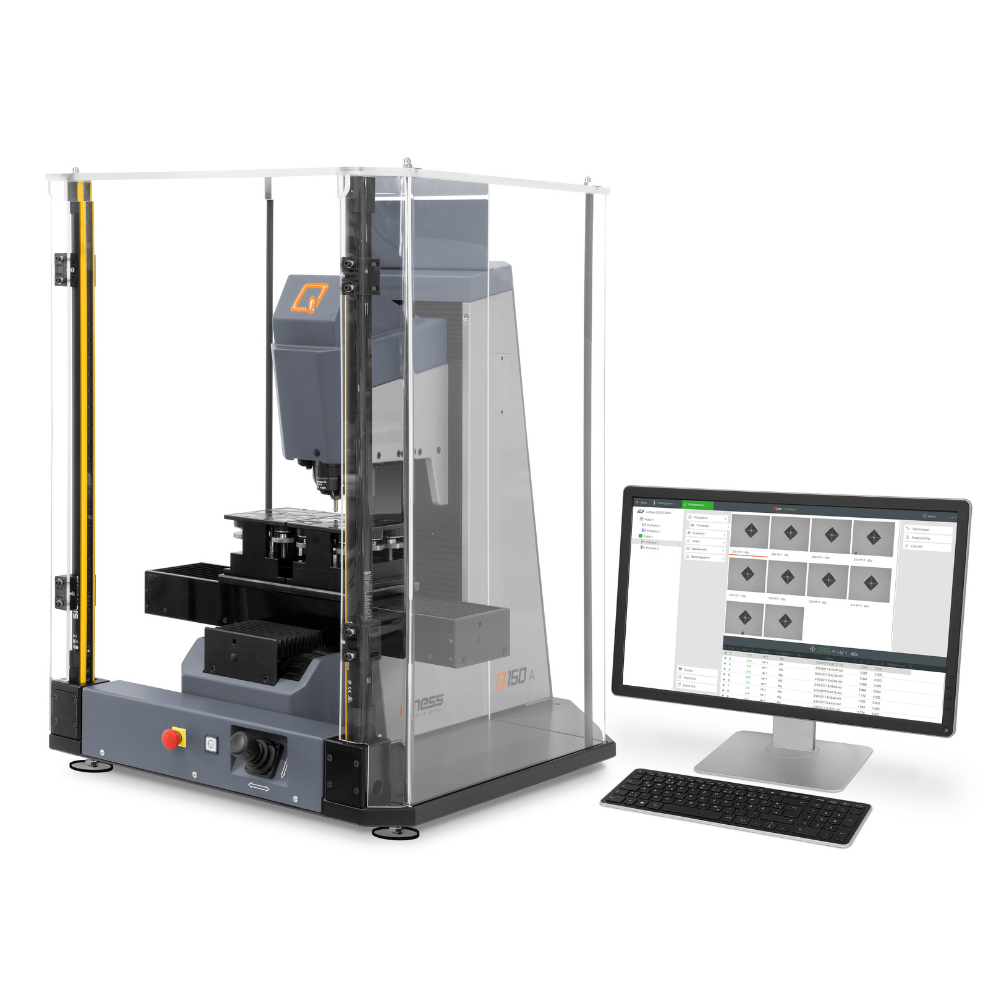

The compact Rockwell hardness tester in combination with the electronic movement control allows quick, accurate and sensitive movement of the test head. Positioning of the test head is collision secured, forceless and accurate via turning angle (6 mm/s) – even automatically with Q150A or A+, if required.

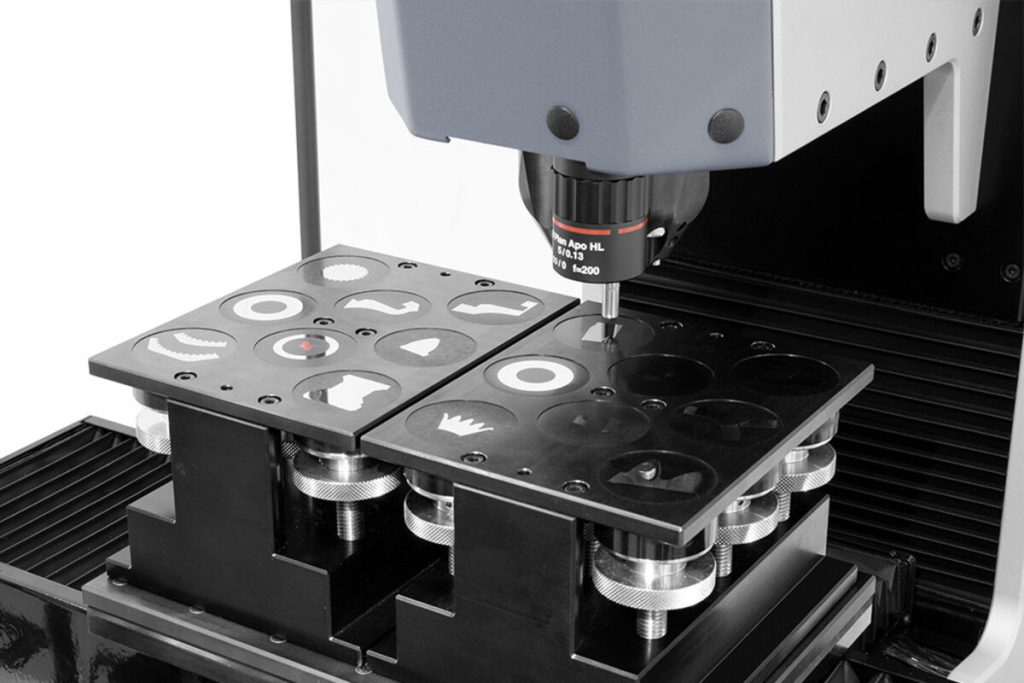

The sophisticated construction offers a large and well arranged test area. The fully automatic XY-slide with high precision optic path measurement system can be equipped i.e. with two 8-fold sample holders. Additionally, customer specific magazines can be managed and created in the software.

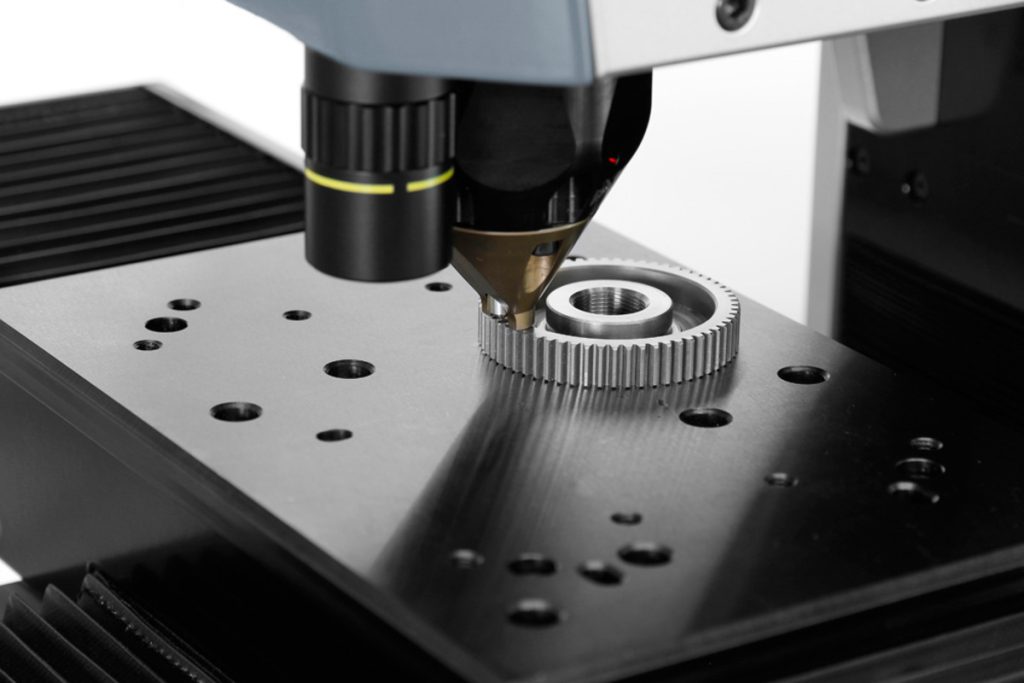

The integrated work space lighting permits accurate positioning of the indenter. (Standard on Q150R)
The entire Q150 Rockwell hardness tester series may be customized. Send us your specifications and we will develop a solution for you.
Maximum repeatability. All specific test data is stored corresponding to any single test point. Test points can easily be checked or tested a second time.
Maximum repeatability. All specific test data is stored corresponding to any single test point. Test points can easily be checked or tested a second time.
|
Test method |
Rockwell |
|
Test force range |
1 – 250 kg (9.81 – 2450 N) |
|
Test height / Throat depth |
187 mm / 180 mm |
|
Test height extension (option) |
377 mm |
|
Height adjustment |
v max 6 mm/s |
|
Software |
Qpix Control2 |
|
Integrated optic system |
– (Option) |
|
Camera system |
up to 2x high resolution camera systems |
|
Sample image camera |
Yes |
|
Test anvil / Cross slide |
motorized 170 x 250 mm |
|
Data interface |
Interface PC-Hardness tester: 3x USB |
|
Weight of basic machine |
120 kg |
|
with Test height extension |
137 kg |
|
Max. workpiece weight |
50 kg |
|
Power supply |
230~1/N/PE, 110~1/N/PE |
|
Max. power consumption |
~ 240 W |
Accessories and Options |
|
|
General |
Single and multi sample holders, Jominy sample holder, Indenters, Lenses, Software modules |
|
