The Vickers / Knoop / Brinell hardness tester series Qness 60 EVO takes micro hardness testing to a whole new level: the high-end laboratory devices of the latest generation combine the best of both worlds – hardness testing and microscopy without compromise and with maximum operating convenience. The revolutionary optical system with color camera provides reproducible and reliable results every time.

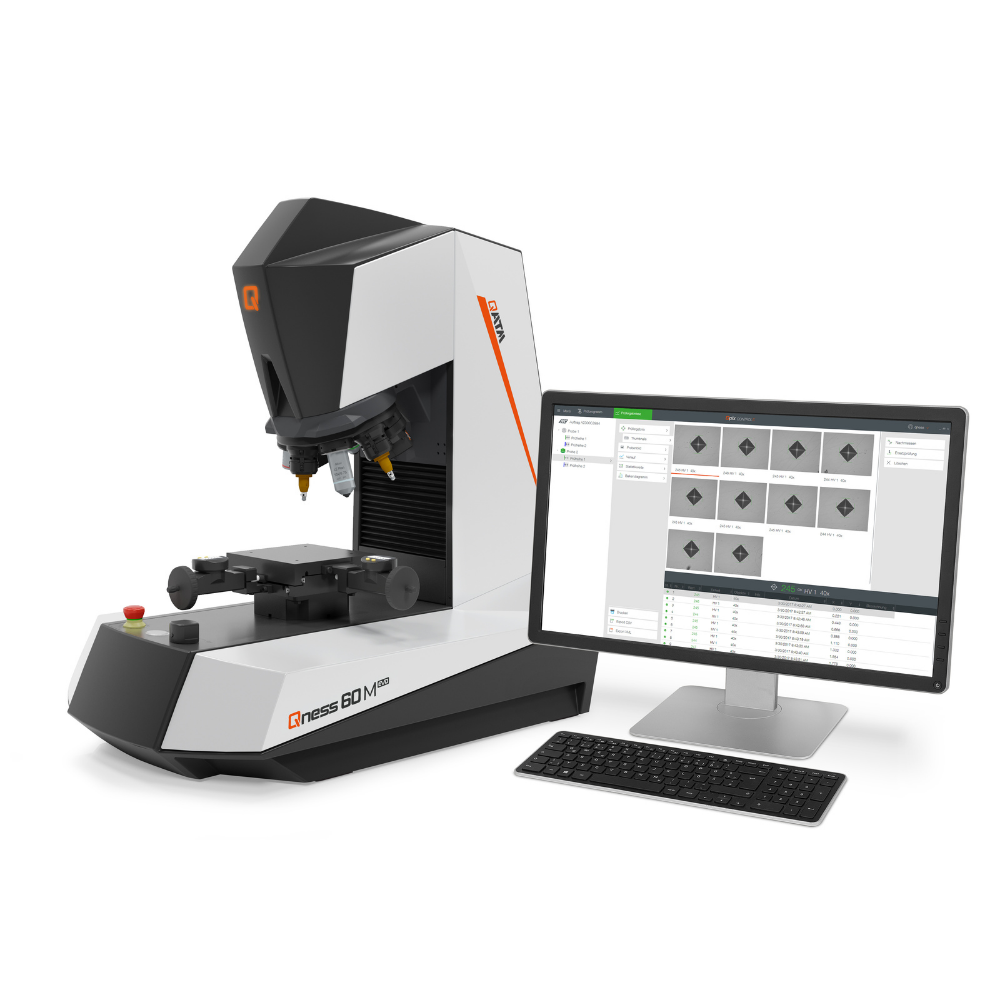

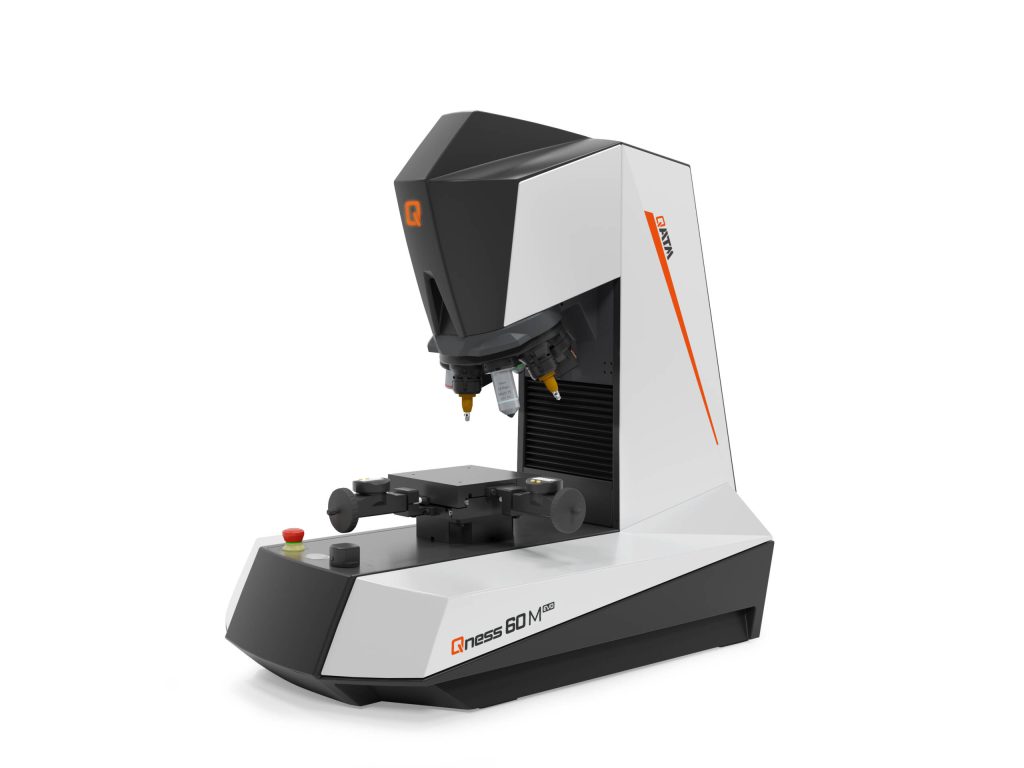

The „M“ model is operated manually and offers excellent flexibility for single-piece testing and materialographic analysis of components of any size. This version is ideally suited when a high-quality testing device for is required for low sample throughput.
There are decisive benefits in distributing vertical movement across 2 axes. Via the first Z-axis there is dynamic motion control, allowing the indenter to be positioned towards the test surface quickly and conveniently at up to 30mm/s. The additional second Z-axis in the QATM system offers a high-resolution positioning system for greater precision in force application and focusing.
Several labour-saving features are already included in the QATM base model:
| Supported test methods | Vickers, Knoop, Brinell |
| Test force range | 0.25 g – 62.5 kg (0.00245- 613.1 N) |
| Test head control | Dynamic, Hand wheel |

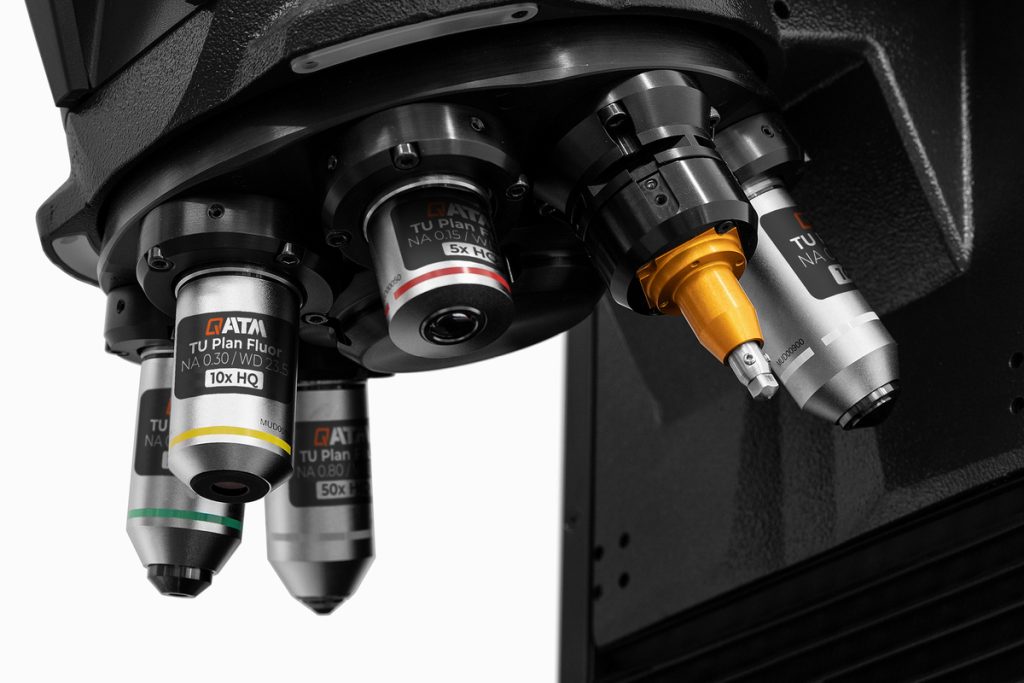

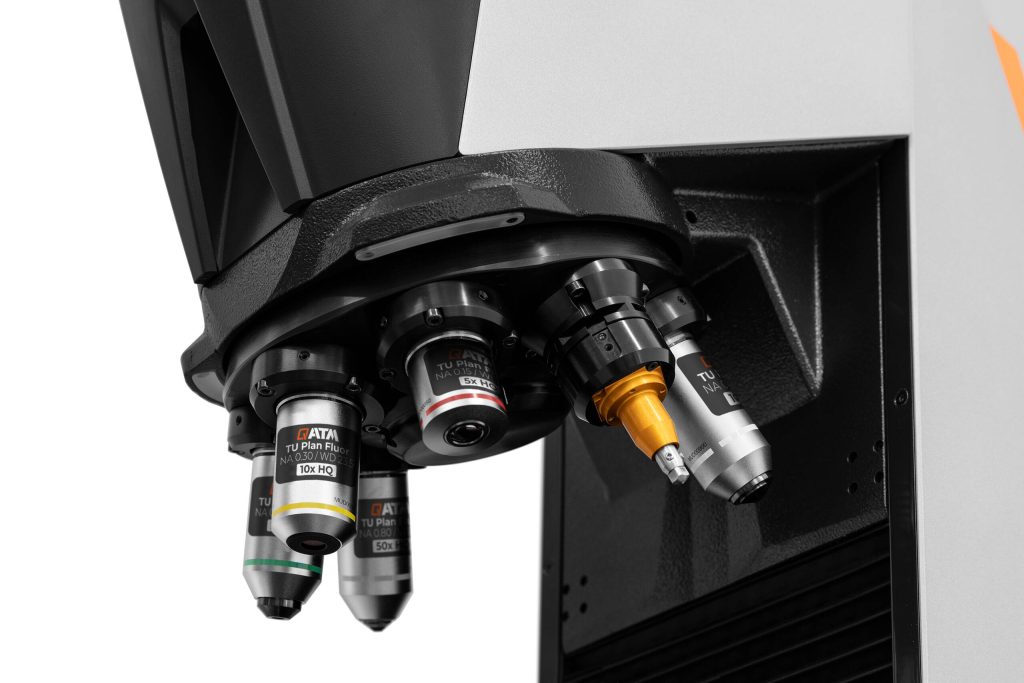

| Tool positions | 8 (motorized Tool Changer) max. 3 hardness testing modules, max. 6 lenses |
| Measurement types | Single-, Row measurement |
| Measurement types (optional) | CHD, NHD, SHD (cross slide) / Phase analysis, Layer thickness measurement, Grain size evaluation |
| Sample image camera | – |
| Test height / Throat depth | 145 / 170 mm |
| Test anvil / XY cross slide | – (Option: manual cross slide) |
| Table size | Ø 100 mm (Cross slide: 135 x 135 mm) |
| Traveling distance | X 150 mm / Y 150 mm / Z 145 mm |
| XY positioning repeatability | – |
| Max. workpiece weight | 50 kg |
| Weight of basic device | 55 kg |
| Software | QPIX CONTROL |
| Power supply | 100 – 240 V, ~1/N/P, 45-65 Hz |
