MAHR Precimar ULM 300-E Calibration measuring instruments

Versions

Description Iespējas Specification Video

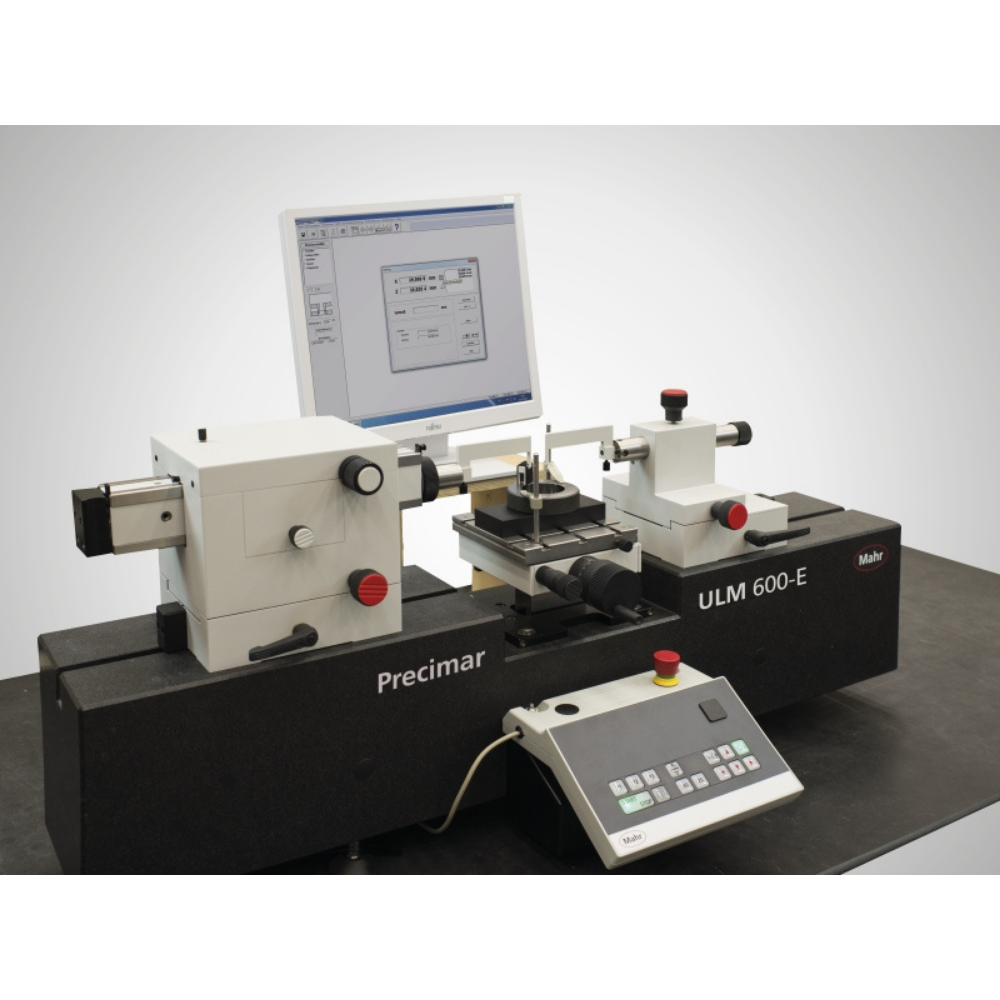

ULM-E universal length measuring comparator instruments are mounted on highly homogeneous rigid granite in a horizontal configuration

X-axis measuring system:

Heidenhain incremental, precision length measuring system, 100 mm long

Z-axis measuring system:

Renishaw incremental, precision length measuring system, 80 mm long

High measuring accuracy
Compliant with Ernst Abbe’s comparator principle
Manual operation of measuring spindle
Air bearings for smooth manual positioning of measuring element and counter bearing (not ULM 300-E)
Object table height adjustment via pushbuttons (also positioning of predefined increments)
Computer provided temperature measurement with 2 or 3 sensors
Computer-aided correction of systematic instrument errors (CAA)
Computer-aided instrument zero point stabilizing
Computer-aided correction of temperature and measuring force influences
Constant measuring force over the entire measuring spindle setting range

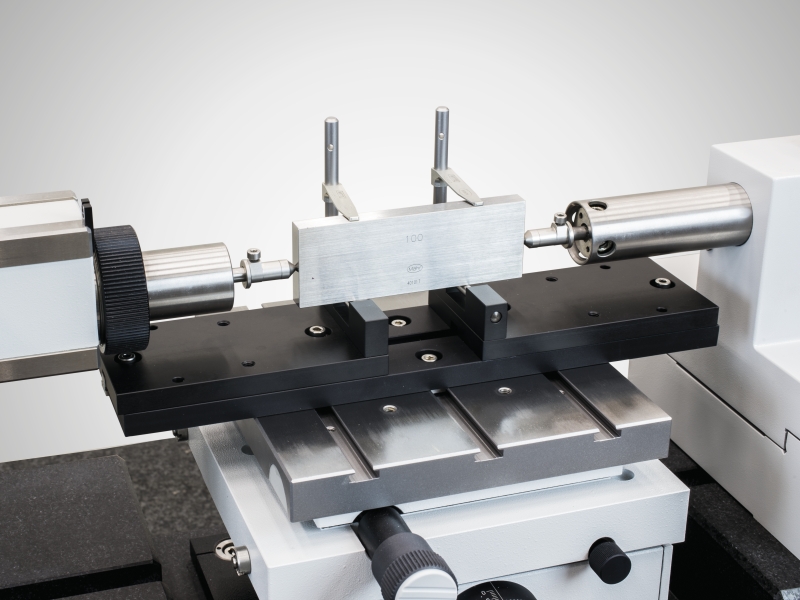

Large object table with precision guidance in the Z direction and a loading capacity of 25 kg
Automatic reversing point detection with static and dynamic adoption of measuring values
Inner thread measurement supported by automatic Z positioning
Highly flexible in application range
Mahr 828 WIN measuring and evaluation software runs under MS Windows®
Optional use of measuring axis extensions

	ULM 300-E	ULM 600-E	ULM 1000-E	ULM 1500-E
Device dimensions	1080 / 1500 / 2000 x 380 x 480 ULM 300-E: 685 x 280 x 480	1080 / 1500 / 2000 x 380 x 480 ULM 300-E: 685 x 280 x 480	1080 / 1500 / 2000 x 380 x 480 ULM 300-E: 685 x 280 x 480	1080 / 1500 / 2000 x 380 x 480 ULM 300-E: 685 x 280 x 480
Measuring range for outer measurement [mm]	0 to 305	0 to 640	0 to 1060	0 to 1560
Measuring range for inner measurement [mm]	0.5 to 150	0.5 to 485	0.5 to 905	0.5 to 1405
Direct measuring range [mm]	100	100	100	100
Measuring uncertainty MPE_E1 (L in mm) [µm]	≤ (0.09+L/2000)	≤ (0.09+L/2000) or ≤ (0.3+L/1500)	≤ (0.09+L/2000) or ≤ (0.3+L/1500)	≤ (0.09+L/2000) or ≤ (0.3+L/1500)
Measuring forces [N]	0.2 ; 1.0 to 4.5 ; 11	0.2 ; 1.0 to 4.5 ; 11	0.2 ; 1.0 to 4.5 ; 11	0.2 ; 1.0 to 4.5 ; 11
Repeatability [µm]	≤ 0.05	≤ 0.05 or 0.1	≤ 0.05 or 0.1	≤ 0.05 or 0.1
Device length [mm]	685	1080	1500	2000
Mass [kg]	110	160	215	280
