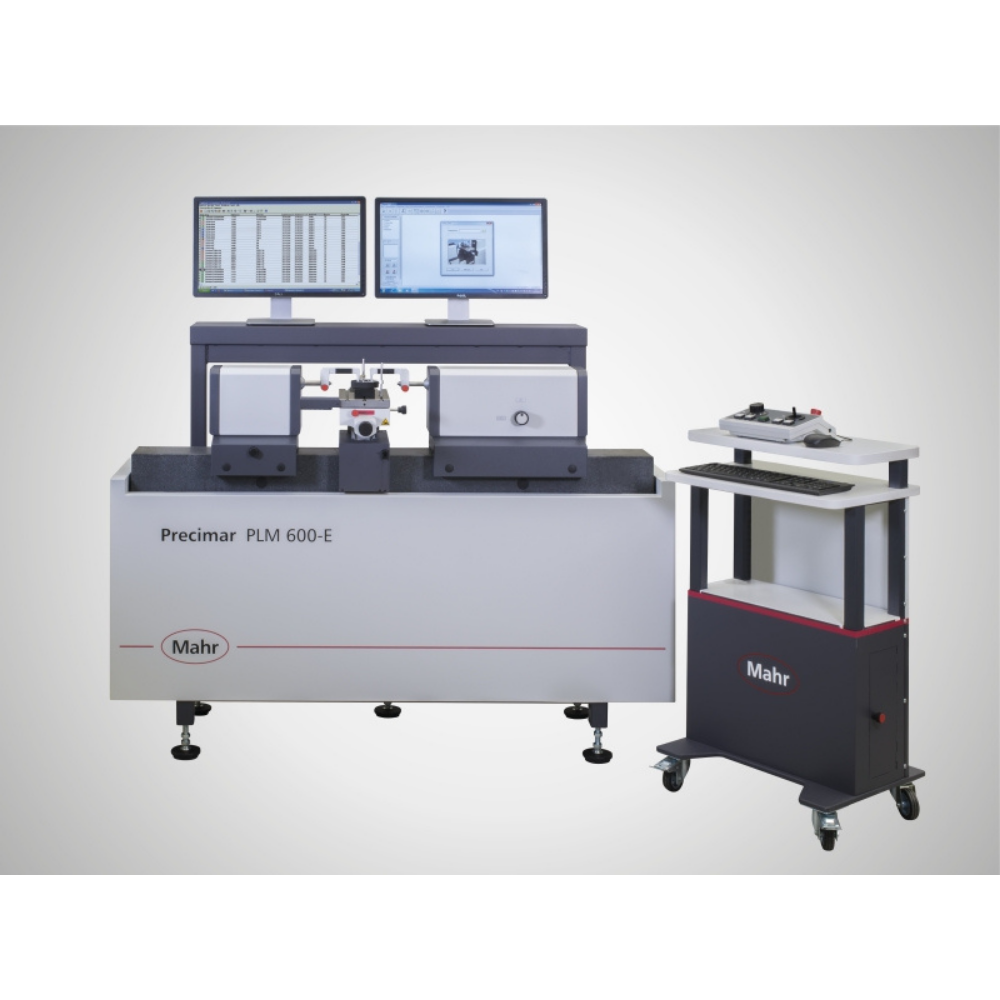

MAHR Precimar PLM 600-E Precision length measuring machine

The PLM-E precision length measuring machine is an Abbe compliant comparator mounted on highly homogeneous rigid granite in a horizontal configuration

Ask a question

Description Iespējas Specification Video

Precimar PLM 600-E Precision length measuring machine

Sensitive adjustment in 5 axes, and object table with a loading capacity of 35 kg
PC-based, multi-axis machine control, including PC workstation and 828 WIN “Free measurement” basic software
Simple operating procedure by means of measuring force-adjusted and joystick-controlled measuring slides with progressive deflection characteristic and automatic contact detection
Automatic detection of outside and inside measurements and computer-aided search for reversal points
The motorized measuring slide allows for high travel speeds
The CNC-controlled vertical and cross adjustment of the universal measuring table facilitates highly efficient measuring
State-of-the-art machine control (MarEcon)
Recording, processing, logging and transfer of measurement data via powerful software and menu-driven controls
Software compensation of thermal dimensional deviations
Very easy to set the measuring force using the software
Aerostatic guides for all slides mounted on the machine bed ensure low measurement uncertainties
Electronic generation of measuring force and automatic contacting
Subjective influences largely eliminated and unintended collisions with the test piece avoided.

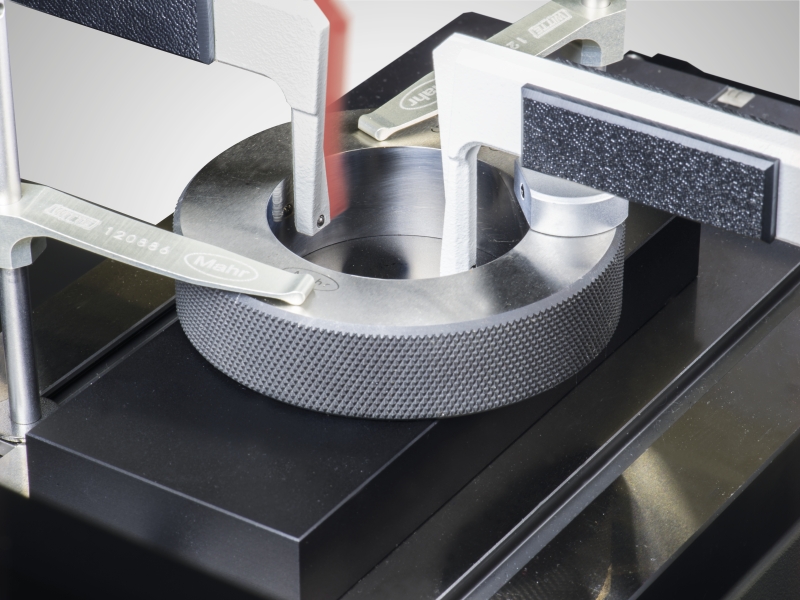

Automatic bore and inner thread measurement
Automatic TY adjustment: What’s unique is that a manual TY-adjustment is still possible
Motorized tilting axis (TB) for alignment. Alignment is carried out via the manual control panel or using the 828 WIN software.
A factory calibration or DAkkS/DKD calibration is available for the Precimar PLM-E

Measuring range for outer measurement [mm]	0 bis 600
Measuring range for inner measurement [mm]	0,5 to 445
Direct measuring range [mm]	200
Position deviation / error limit (L in mm) [µm] *	≤ (0.07 + L/2000)
Measuring uncertainty MPE_E1 (L in mm) [µm]	≤ (0,085 + L/1500)
Measuring forces [N]	0 to 13.9
Repeatability [µm]	≤ 0.05
Contacting speed with joystick (max)	8 mm/s
Device length [mm]	1660
Mass [kg]	480
Table surface (A x B) mm	150 X 300
