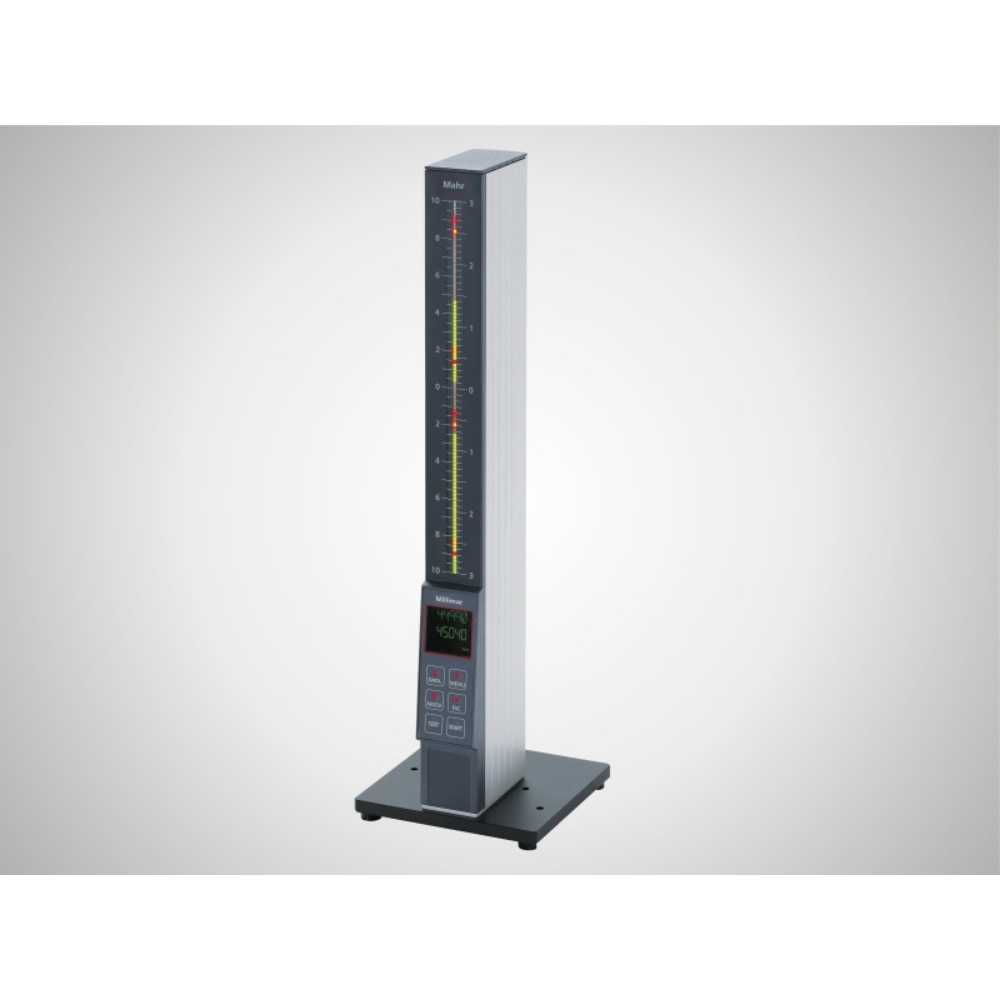

Millimar S 1840 F Compact column amplifier

  • Easy-to-read 3-color analog display
  • Measurement in conjunction with inductive probes (e. g. Mahr P2004) or electronic plug gages, etc.
  • 2 inputs for inductive probes (compatible with probes from Mahr, Federal)
  • Extensive calculation of input signals – ±A, ±B and all combinations
  • Dynamic measurements – Max, Min, Max-Min, Average
  • Programmable either via the integrated keypad or the RS-232 interface by means of MS -Windows® configuration software
  • Programmable warning and tolerance limits (exceeding the limit causes the color to change from yellow to red)
  • Backlit, two-line LCD for displaying measured values, help texts and units of measurement
  • 1 analog output
  • 3 digital inputs (e.g. measurement start, master measurement)
  • 3 digital outputs for good – reject – rework, measuring time
