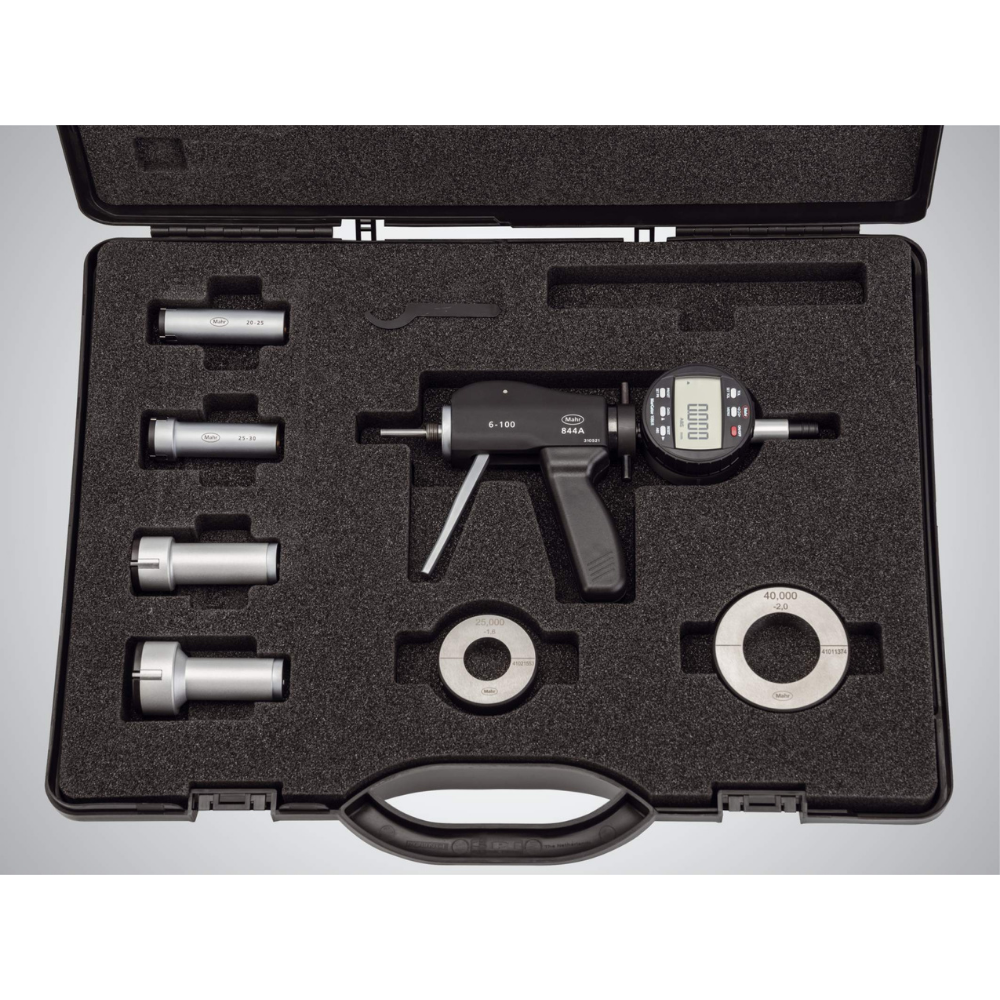

MAHR Micromar 844 AS Self-centering measuring pistol

Threaded connection for changing the measuring head
Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
Anvils from 12 mm are carbide tipped
From 12 mm the anvils can be used to measure the bottom of a bore
From 40 mm all measuring heads are made from aluminium to reduce weight
Measuring value indication is always easy to read when using an electronic dial indicator with a rotatable display
instruction manual
setting rings
key for replacing measuring heads (from 30 mm)
case

Description Iespējas Specifikācija Video

Technical data

Order no.	Measuring range mm	Measuring range inch	Resolution mm/inch	Notes error limit
4487750	6 – 12	.25 – .4725″		Over the full length of the anvils Indicator is not taken into consideration
4487751	12 – 20	.4725 – .775″		Over the full length of the anvils Indicator is not taken into consideration
4487752	20 – 50	.775 – 2″		Over the full length of the anvils Indicator is not taken into consideration
4487753	50 – 100	2 – 4″		Over the full length of the anvils Indicator is not taken into consideration
4487760	6 – 12	.25 – .4725″	0.0005 / .00002″	Over the full length of the anvils Indicator is not taken into consideration
4487761	12 – 20	.4725 – .775″	0.0005 / .00002″	Over the full length of the anvils Indicator is not taken into consideration
4487762	20 – 50	.775 – 2″	0.0005 / .00002″	Over the full length of the anvils Indicator is not taken into consideration
4487763	50 – 100	2 – 4″	0.0005 / .00002″	Over the full length of the anvils Indicator is not taken into consideration

Applications

For measuring:
