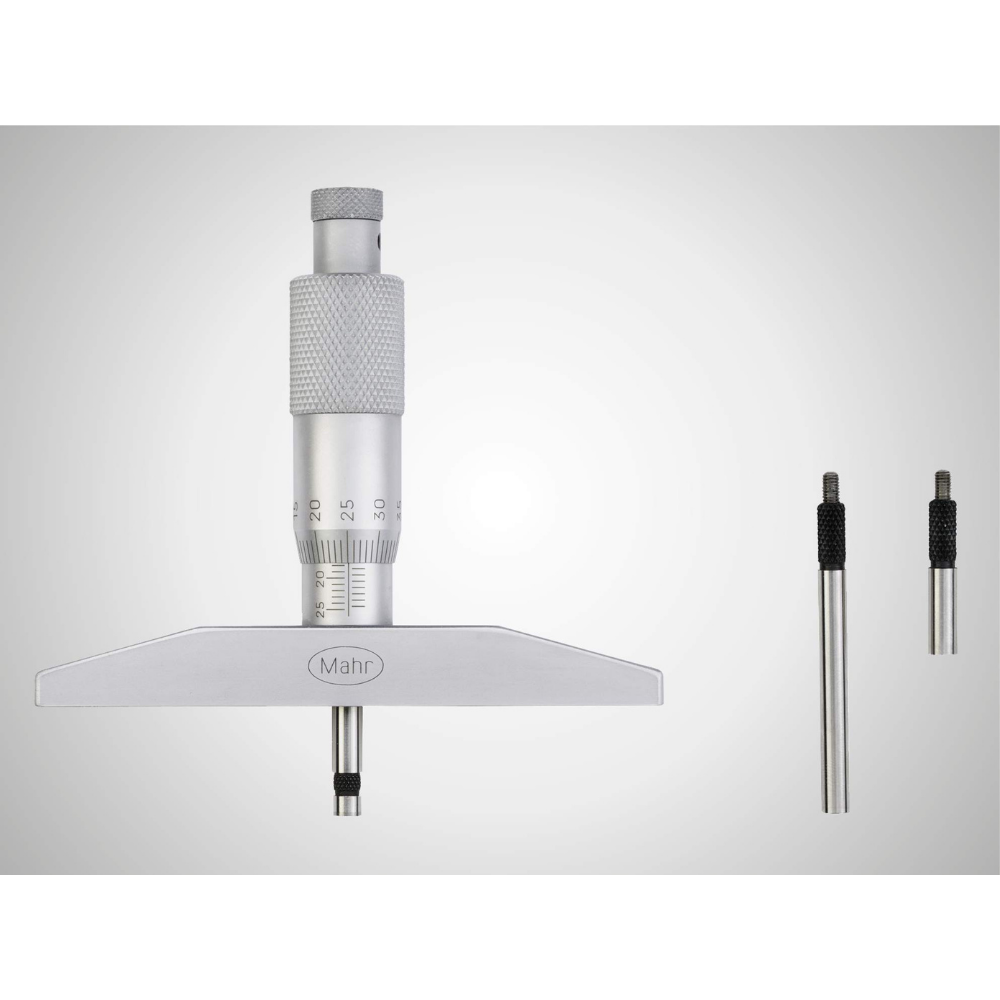

MAHR Micromar 45 T Depth micrometer

MAHR Micromar 45 T Depth micrometer
MAHR Micromar 45 T Depth micrometer

MAHR Micromar 45 T Depth micrometer

  • Operating and display units with satin chrome finish
  • Stainless spindle is hardened throughout and ground
  • Rapid drive with integrated ratchet
  • extensions 25 mm and 50 mm
  • case
Ask a question
Description Iespējas Specifikācija Video

Micromar 45 T Depth micrometer

Technical data

Order no.Measuring range mmGraduation value mmError limit µmNotes error limitSpindle diameterSpindle thread pitch_mm
4180000
0 – 100
0,01
5 µm
Length tolerance of the extension +/-1,5 µm
4 mm
0.5 mm



Applications

  • Depth measurement
  • Measuring the space between grooves and groove widths in conjunction with a disc anvil 45 Tm
