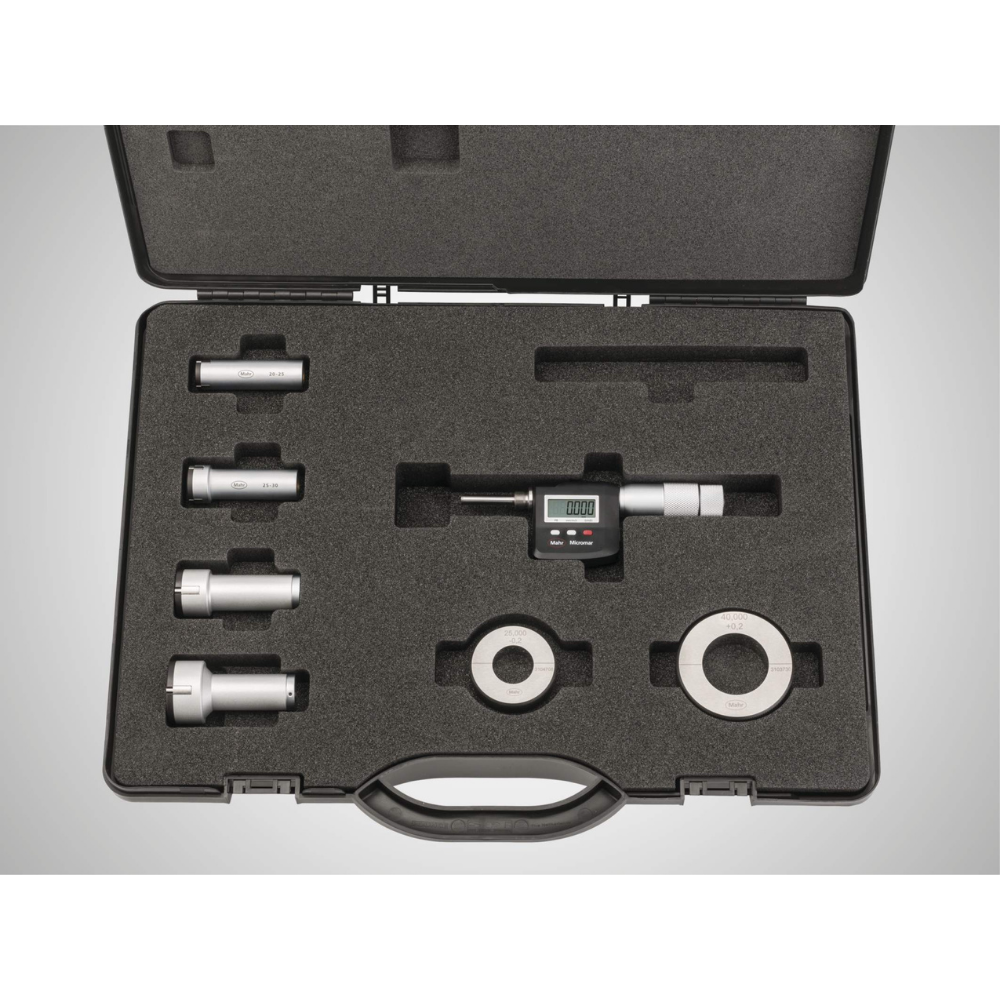

MAHR Micromar 44 EWR Digital self-centering inside micrometer sets

Threaded connection for changing the measuring head
Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
Anvils from 12 mm are carbide tipped
From 12 mm the anvils can be used to measure the bottom of a bore
From 40 mm all measuring heads are made from aluminium to reduce weight
Digimatic
Opto RS-232C
USB
Battery life approx. 2 years
IP 52
basic units 44 EWg
measuring heads 44 Ak
setting rings
battery
instruction manual
case

8.5 mm

Description Iespējas Specifikācija Video

Technical data

Order no.	Measuring range mm	Measuring range inch	Resolution mm/inch	Error limit µm	Notes error limit
4191160	6 – 12	.25 – .4725″	0.001 / .00005″	4 µm	over the full length of the anvils
4191161	12 – 20	.4725 – .775″	0.001 / .00005″	4 µm	over the full length of the anvils
4191162	20 – 50	.775 – 2″	0.001 / .00005″	4 µm	over the full length of the anvils
4191163	50 – 100	2 – 4″	0.001 / .00005″	5 µm	over the full length of the anvils
