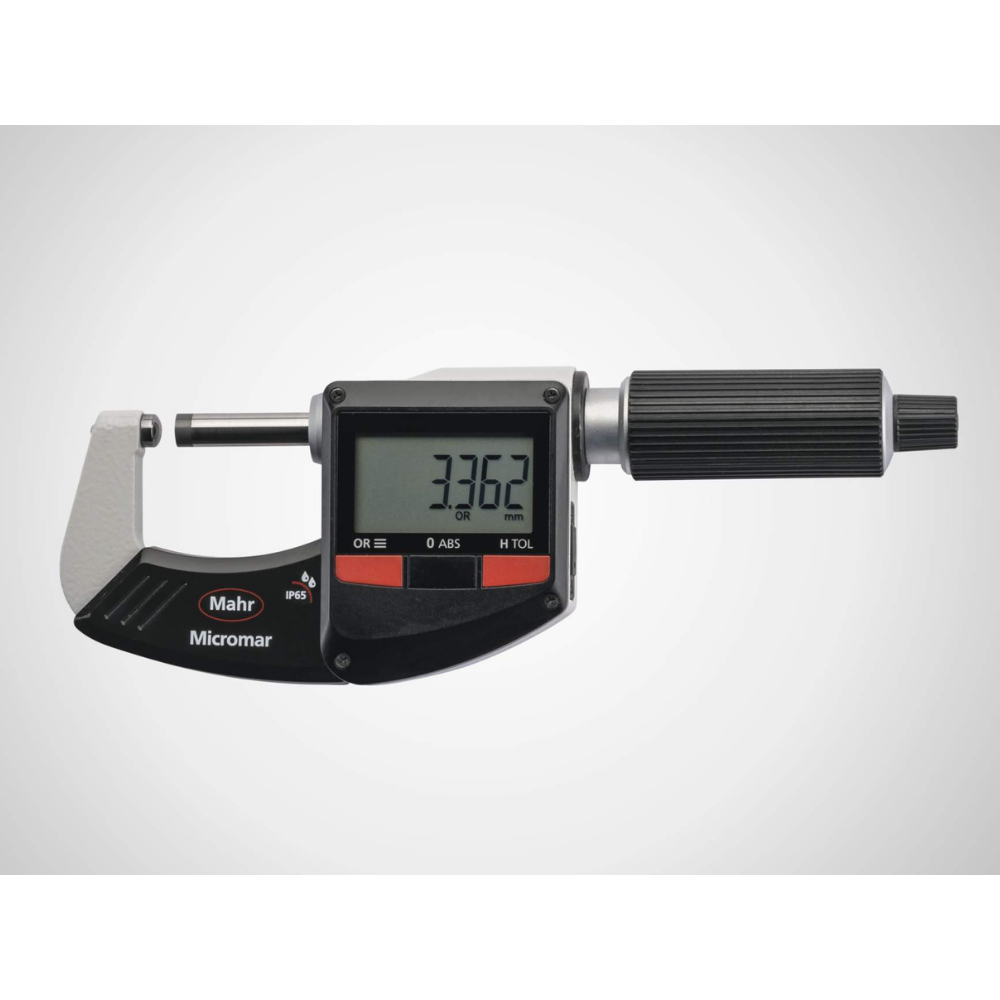

MAHR Micromar 40 EWR-R / 40 EWRi-R, For measuring the thickness of pipe walls

MAHR Micromar 40 EWR-R / 40 EWRi-R, For measuring the thickness of pipe walls
MAHR Micromar 40 EWR-R / 40 EWRi-R, For measuring the thickness of pipe walls

MAHR Micromar 40 EWR-R / 40 EWRi-R, For measuring the thickness of pipe walls

  • Measuring surfaces: spherical anvil, planar spindle
  • High contrast analog display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
  • MarConnect (bidirectional)
  • USB
  • Digimatic
  • Battery life approx. 2 years
  • IP 65
  • instruction manual
  • battery
  • setting standard (measuring range of 25-50 mm)
  • case
10 mm
Ask a question
Description Iespējas Specifikācija Video

Micromar 40 EWR-R Digital micrometer



Technical data



Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit µmSpindle diameterSpindle thread pitch_mmMeasuring force (N)
4157030
0 – 25
0 – 1″
0.001 / .00005″
4 µm
6.5 mm
0.5 mm
5 – 10
4157031
25 – 50
1 – 2″
0.001 / .00005″
4 µm
6.5 mm
0.5 mm
5 – 10



Applications

For measuring the thickness of pipe walls

Functions

  • RESET (set display to zero)
  • ABS (display can be set to zero without losing reference to ORIGIN)
  • mm/inch
  • ORIGIN (for entering a numerical value)
  • LOCK function (key lock)
  • TOL (tolerance and warning limits)
  • HOLD (storage of measured values)
  • DATA (data transmission)
  • Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)
