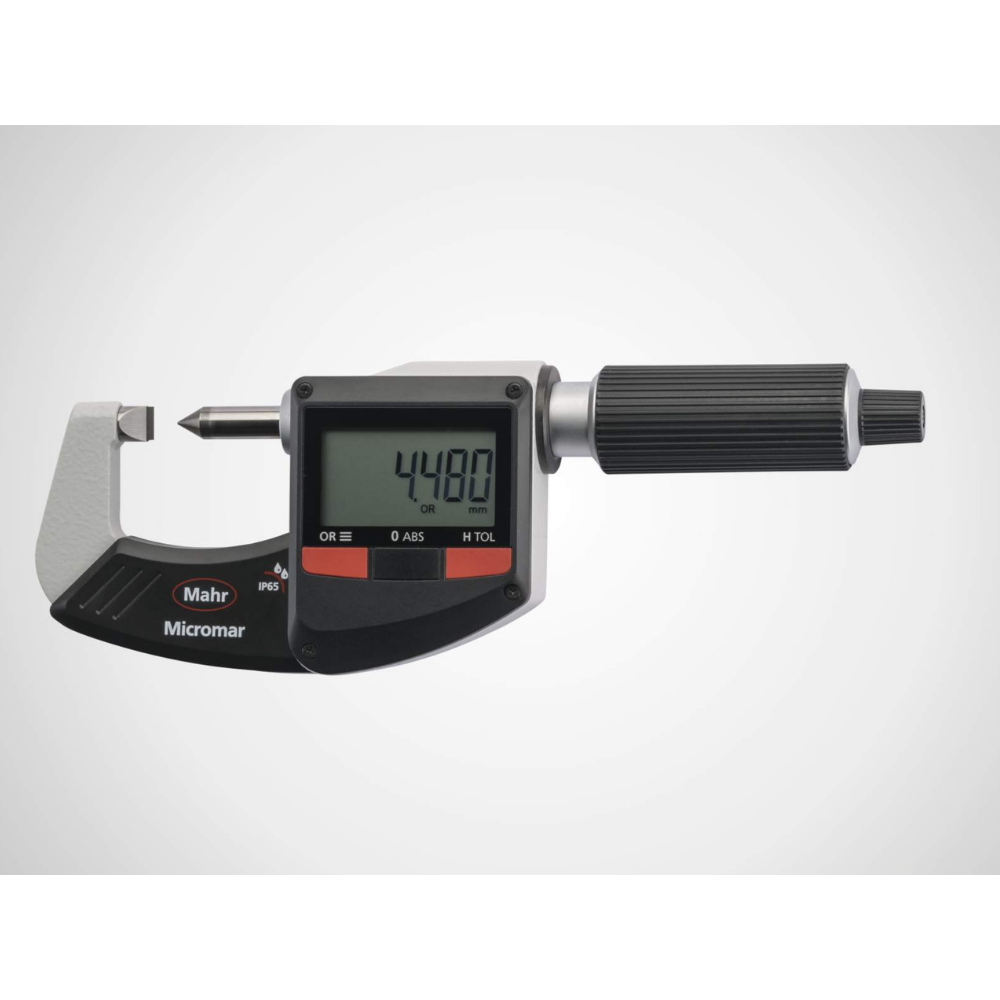

MAHR Micromar 40 EWR-K / 40 EWRi-K, For measuring crimp heights on crimp contacts and end splices

MAHR Micromar 40 EWR-K / 40 EWRi-K, For measuring crimp heights on crimp contacts and end splices
MAHR Micromar 40 EWR-K / 40 EWRi-K, For measuring crimp heights on crimp contacts and end splices

MAHR Micromar 40 EWR-K / 40 EWRi-K, For measuring crimp heights on crimp contacts and end splices

  • Measuring surfaces: Anvil with narrow web, pointed spindle
  • High contrast analog display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
  • MarConnect (bidirectional)
  • USB
  • Digimatic
  • Battery life approx. 2 years
  • IP 65
  • instruction manual
  • battery
  • case

10 mm

Ask a question
Description Iespējas Specifikācija Video

Micromar 40 EWR-K Digital micrometer



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit µmSpindle diameterSpindle thread pitch_mmMeasuring force (N)
4157040
0 – 20
0 – 0.8″
0.001 / .00005″
4 µm
6.5 mm
0.5 mm
5 – 10



Applications

For measuring crimp heights

Functions

  • RESET (set display to zero)
  • ABS (display can be set to zero without losing reference to ORIGIN)
  • mm/inch
  • ORIGIN (for entering a numerical value)
  • LOCK function (key lock)
  • TOL (tolerance and warning limits)
  • HOLD (storage of measured values)
  • DATA (data transmission)
  • Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)
