The flexible, all-round measuring solution

The MarSurf CM explorer is a compact confocal microscope for the three-dimensional measurement and analysis of surfaces – contactless, independent of material, and fast.

The MarSurf CM explorer is suitable for use in test laboratories and equipped for quality assurance in production environments due to its robust construction and insensitivity to environmental influences.

Ask a question
Description Iespējas Specification Video

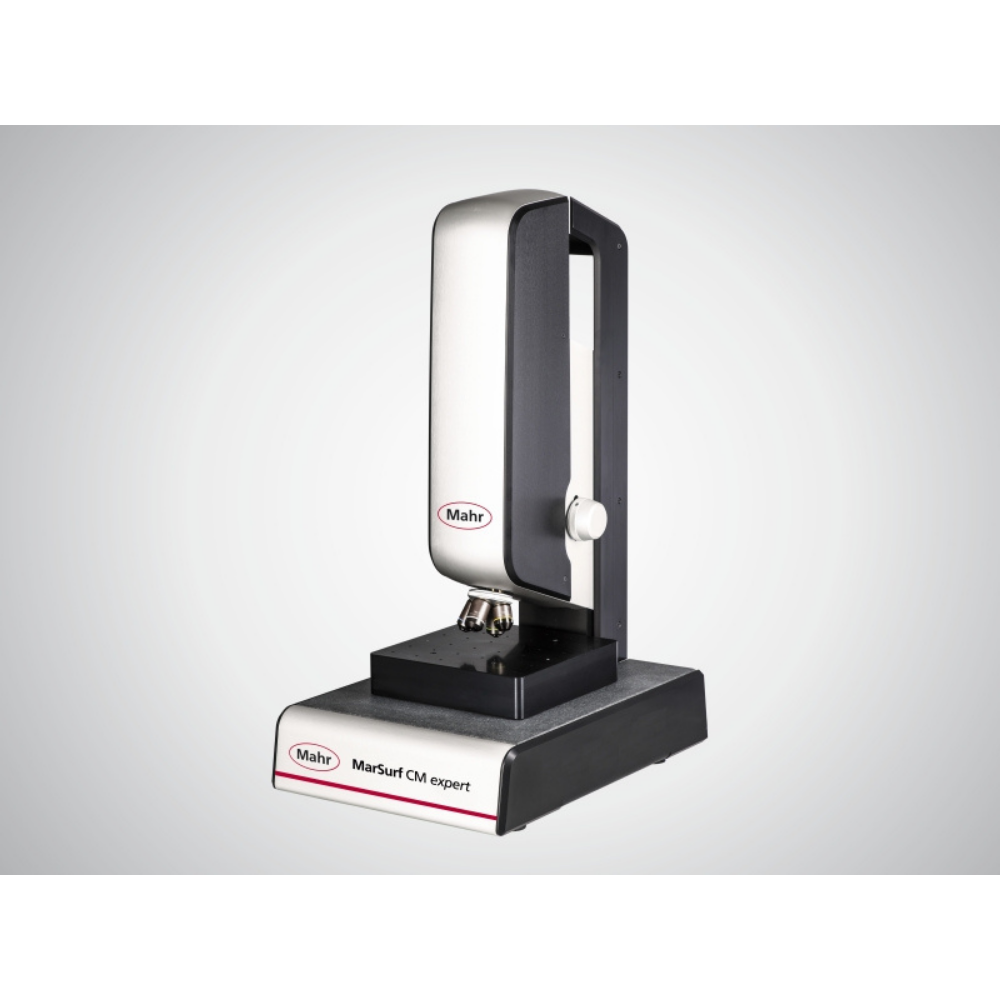

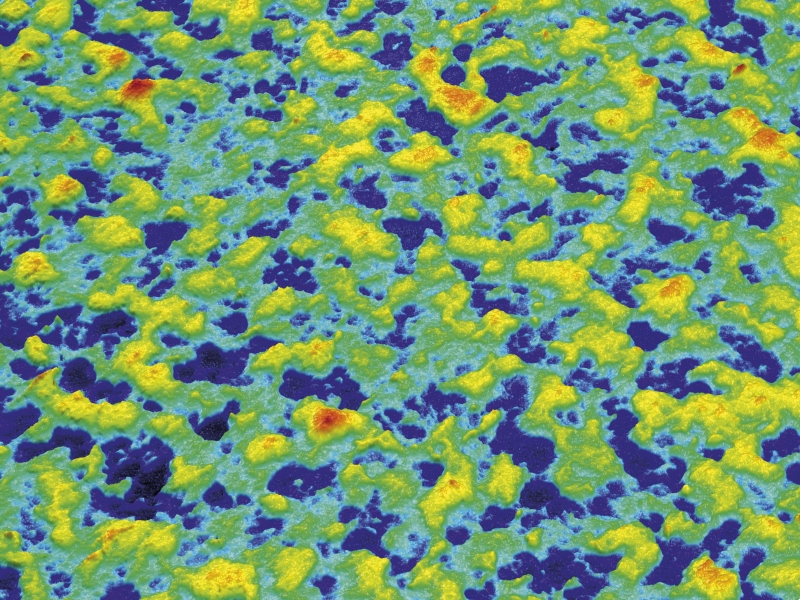

MarSurf CM expert 3D surface measurement

Key benefits:

  • User-independent serial measurements by automation software
  • High measuring speed – even at full resolution
  • User-friendly concept
  • Safety through collision detection in all directions to protect your workpiece and measuring system
  • High Dynamic Range (HDR) function, 16-bit
  • Consistent high resolution output of large measuring surfaces due to HD stitching

This established optical measuring system is successfully used, for example, for:

  • Roughness measurement according to DIN EN ISO 4287 / 25178
  • Topography measurement (including volume, wear, isotropy)
  • Measurement of microgeometry and layer thicknesses

Users value the reliability of this measuring system, which provides quantitative, traceable 3D characteristics for many industries .

Resolution
up to 2 (nm) vertical
Measuring speed
up to 100fps
Measuring principle

Confocal

High-performance LED (505nm / white)
Other
Collision detection in xyz direction
Power supplied
100 – 240 V
Surface parameters
ISO 4287, ISO 13565, ISO 25178, …
Positioning volume x
100 mm
Positioning volume y
100 mm
Positioning volume z
70 mm
