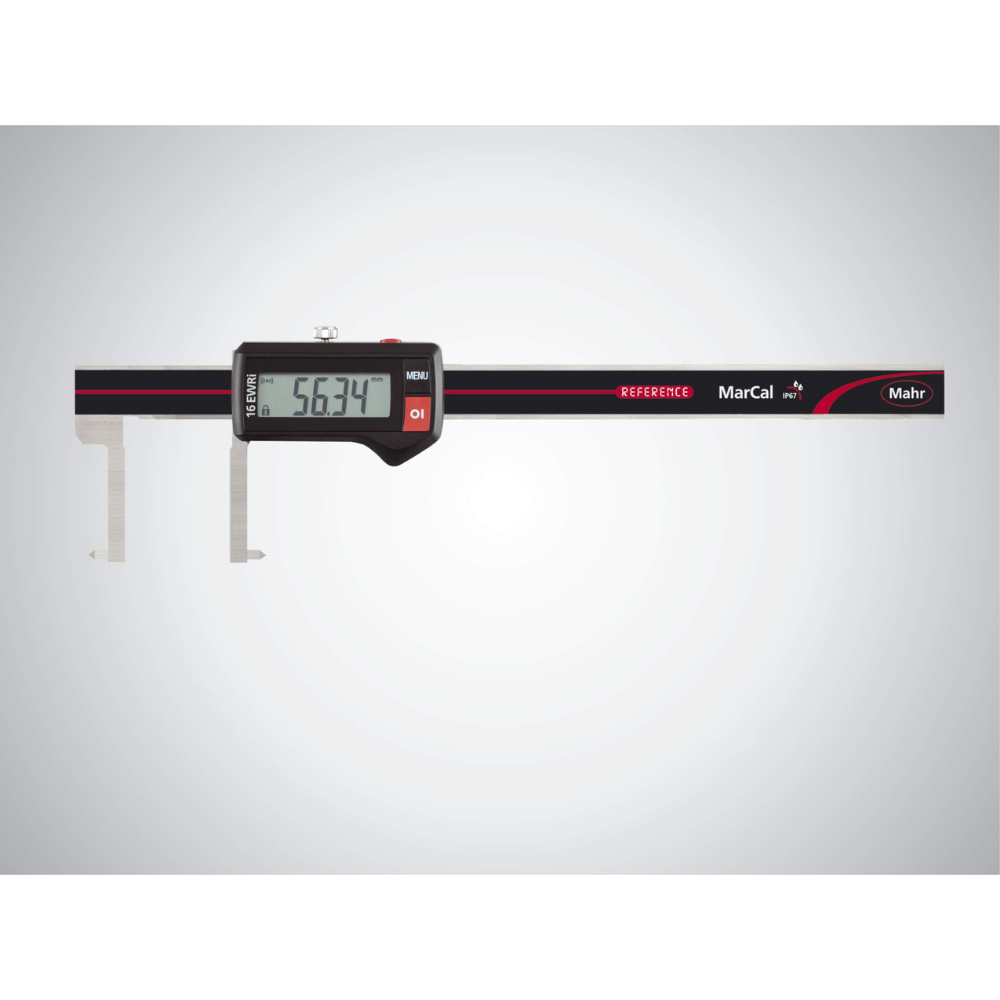

MAHR MarCal 16 EWRi-SI Digital Caliper for special applications

MAHR MarCal 16 EWRi-SI Digital Caliper for special applications
MAHR MarCal 16 EWRi-SI Digital Caliper for special applications

MAHR MarCal 16 EWRi-SI Digital Caliper for special applications

  • High contrast analog display
  • Locking screw above
  • Lapped guideway
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • Integrated wireless
  • IP 67
  • battery
  • instruction manual
  • case
  • Battery life approx. 3 years (approx. 0.5 in wireless mode)
Height of digits
  • 11 mm
Ask a question
Description Iespējas Specifikācija Video

MarCal 16 EWRi-SI Digital Caliper for special applications



Technical data

Order no.Measuring range mmMeasuring range inchResolution mm/inchError limit (mm)Error limit inchesStandardDepth Rod
4103078
20 – 170
0.8 – 6.7″
0.01 / .0005″
0.03 mm
.001″
Factory standard
none
4103378
20 – 170
0.8 – 6.7″
0.01 / .0005″
0.03 mm
.001″
Factory standard
none



Functions

  • ON/OFF
  • AUTO-ON / OFF
  • mm/inch
  • LOCK function (key lock)
  • RESET (set display to zero)
  • PRESET (for entering a numerical value)
  • DATA (data transmission)
  • HOLD (storage of measured values)
