Parameters – Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rz (Jis), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (Jis), Rmax
Range – 320µm
Accuracy – ± 10%
Resolution (Ra) – 0.001 µm
Probe Type – inductive
Stylus radius/angle – 5µm/90°
Stylus material – diamond
Measuring Force – 4mN
Measuring Unit – µm/µin
Memory 100 measurement results

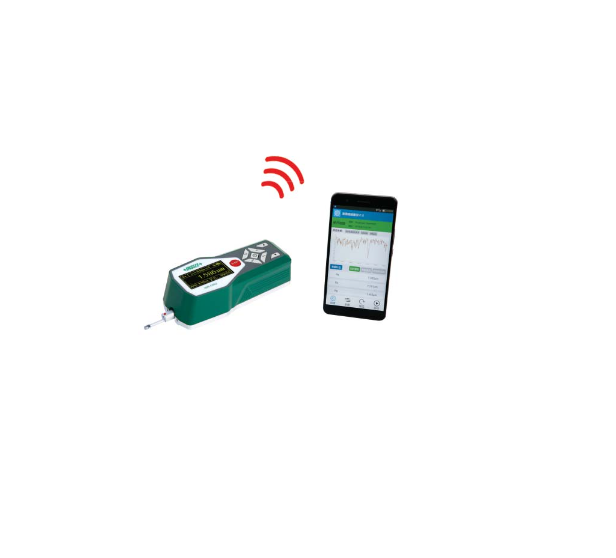

Output USB and Bluetooth
Power built-in rechargeable battery
Dimensions 5.55 L x 2.16 W x 1.57″ H
