Leading industrial instrument series for fast and easy coating thickness measurement in corrosion protection and industrial applications.

Ask a question
Description Features Applications

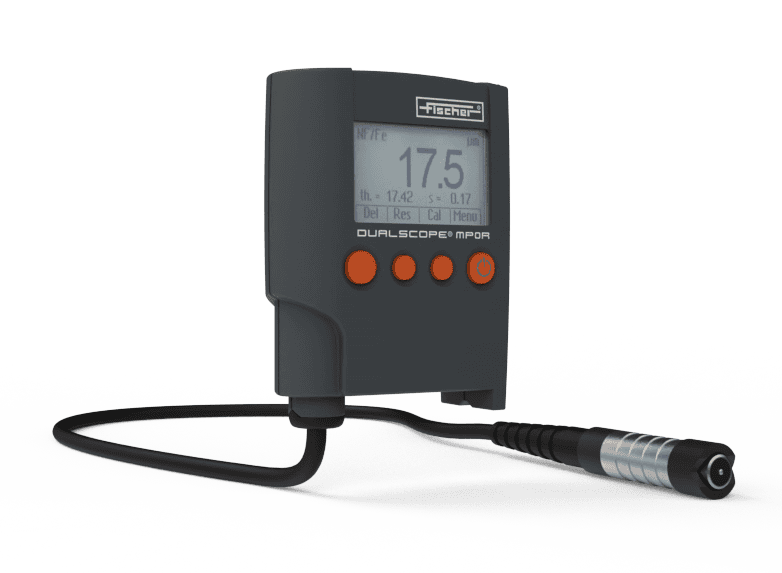

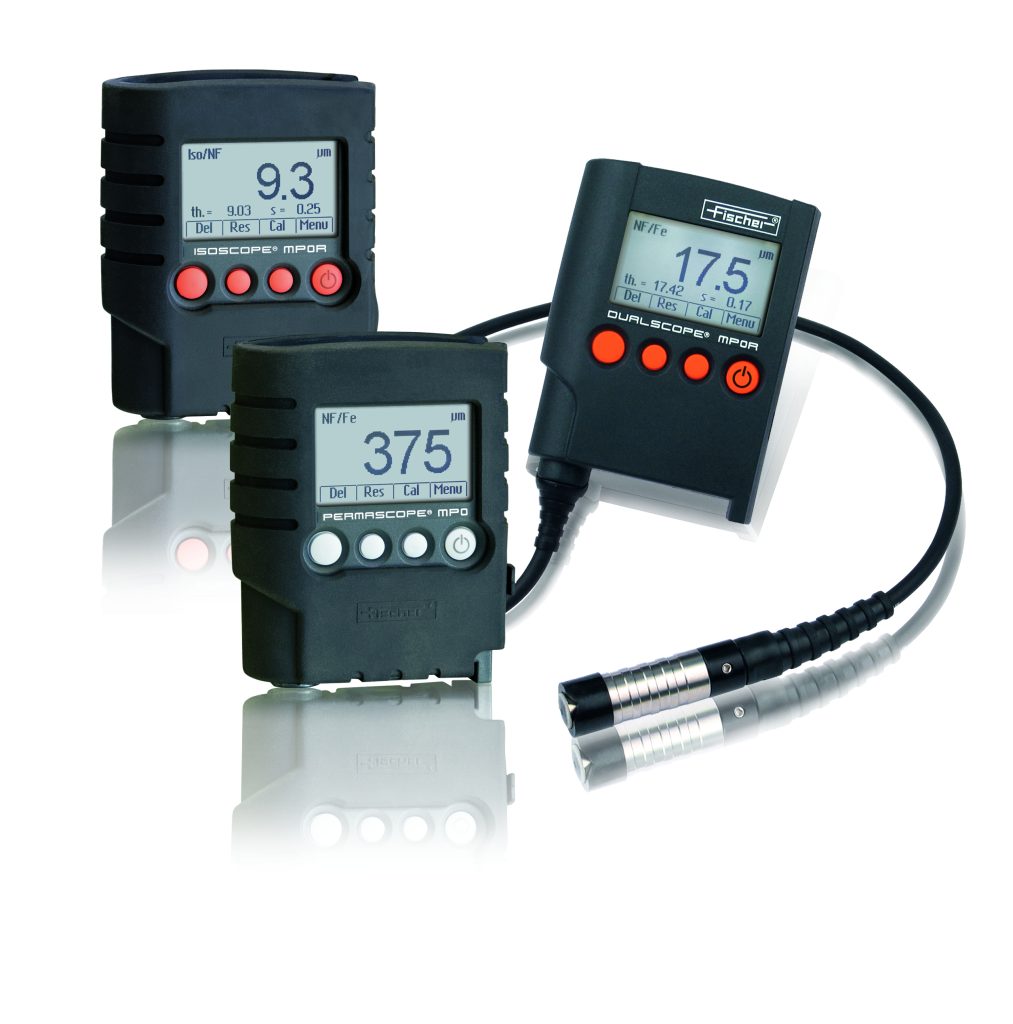

Tactile coating thickness measurement for your pocket.

Practical to use and easy to handle, the MP0® series measuring gauges are a compact solution for measuring coating thickness onsite quickly and reliably. With two illuminated displays, a robust housing, and an intuitive user interface, they are your ideal companion for measuring on-the-go. Use these small handheld gauges to measure coating thicknesses (e. g. paint coating thickness or hot-dip galvanized coating thickness) on practically all metals quickly, easily and non-destructively.

  • Perfect fit.

The devices of the DUALSCOPE® family automatically select the right test method for your measuring task

  • Flexible.

Available in many different configurations depending on requirements

  • Compact.

Fits in any pocket

  • Up to all challenges.

Precise measurement on many surfaces in a wide range of coating thicknesses

  • Built to last.

Suitable for thousands of measurements thanks to low wear probe pole

  • Ideal for onsite use.

Compact design and 2-display solution

  • Measuring method: Magnetic induction and amplitude-sensitive eddy current
  • Measuring range: DUALSCOPE®: 0 – 2,000 µm / ISOSCOPE®: 0 – 1,200 µm / PERMASCOPE®: 0 – 2,500 µm
  • High-precision conductivity compensation
  • Measured value memory: 10,000 or 1,000 in one application, depending on the device
  • Probe integrated in the device, FP(W) models with connected probe for a wide range of applications
  • Pre-installed measurement modes for thickness measurement according to IMO PSPC or SSPC-PA2 (MP0®R)
  • Limit value monitoring via light

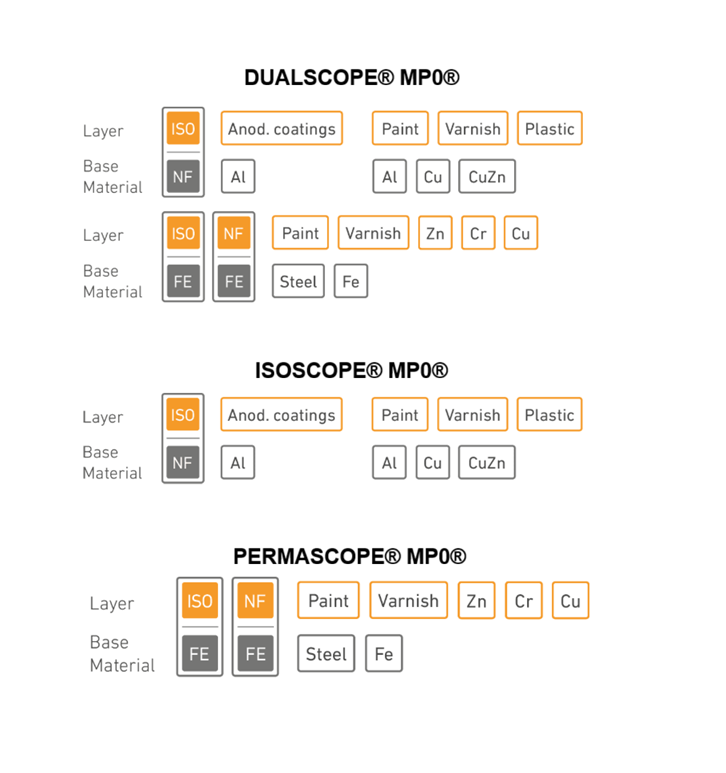

DUALSCOPE® MP0®

Measuring method: Amplitude-sensitive eddy current method and magnetic induction measuring method

Applications: Measurement of non-magnetic or electrically non-conductive layers on magnetic or non-magnetic, electrically conductive base materials

Application examples:

  • Coating thickness measurements on steel and non-ferrous metals
  • Zinc, chrome, copper, paint, varnish or plastic coatings on steel, iron or cast iron
  • Paint, lacquer or plastic coatings on aluminum, copper or brass
  • Anodized coatings on aluminium
  • Suitable for smooth and rough surfaces

ISOSCOPE® MP0®

Measuring method: Amplitude-sensitive eddy current method

Applications: Measuring electrically insulating layers on non-magnetic, electrically conductive metals

Application examples:

  • Precise coating thickness measurements on practically all non-ferrous metals
  • Paint, lacquer or plastic coatings on aluminum, copper or brass
  • Anodized coatings on aluminium

PERMASCOPE® MP0®

Measuring method: Magnetic induction measuring method

Applications: Measurement of non-magnetic layers on magnetic base materials

Application examples:

  • Precise coating thickness measurements of thin layers on steel and iron
  • Zinc, chrome, copper, paint, varnish or plastic coatings on steel, iron or cast iron
  • Coating thickness measurements on smooth and rough surfaces
