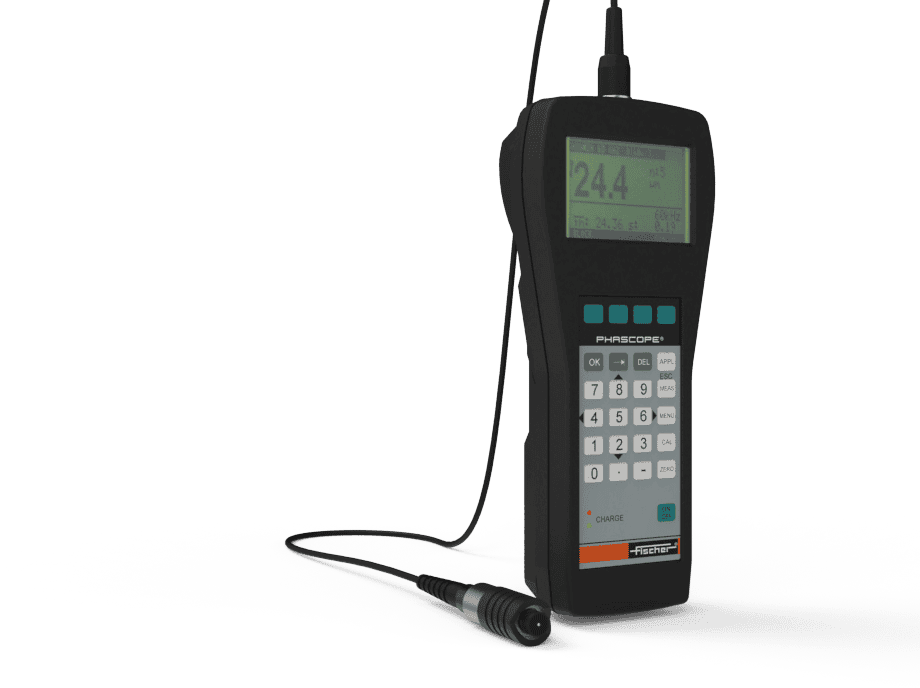

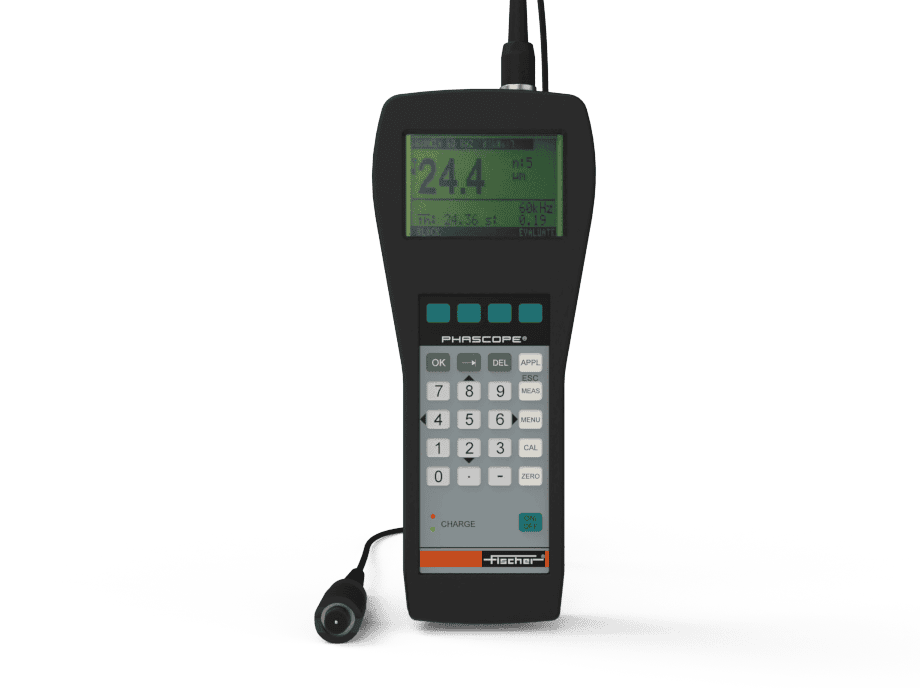

Helmut-Fischer PHASCOPE® PMP10

The PHASCOPE® PMP10 is ideal for quality control of metal coatings and has clever functions that increase the efficiency of your quality assurance process. In conjunction with the appropriate probe, it enables quick measurement of the thickness of a wide variety of coatings, even on small test parts or in hard-to-reach areas. Even rough surfaces can be tested with absolute precision and reliability using the compact handheld device.

• Measurement in just one pass.

Optimize quality processes and save time when measuring paint and zinc coatings

• Your security.

Reliable measurement results on curved measuring surfaces and rough surfaces

• Quick-measure design.

Automatic base material recognition simplifies measurement on steel or aluminum, as probe does not need to be changed

• Predestined for small parts.

Thanks to measurement with the phase-sensitive eddy current test method

• Coating thickness measurement of zinc on steel or copper on electroplated steel
• Coatings of nickel on steel and copper on iron or bronze
• Non-ferrous metals on non-conductive substrates, such as copper on PCBs
• Thermally sprayed aluminum (TSA) on steel
• Reliable measurement results with curved geometries, convex and concave measuring points and rough surfaces
• With special probes suitable for plated-through holes in PCBs
• Multilayer systems consisting of individual layers in the micrometer range
