The handheld device series for maximum flexibility and control in measuring coating thickness. Ideal for use with inspection plans.

Ask a question
Description Features Applications

Coating thickness measurement for professional quality assurance.

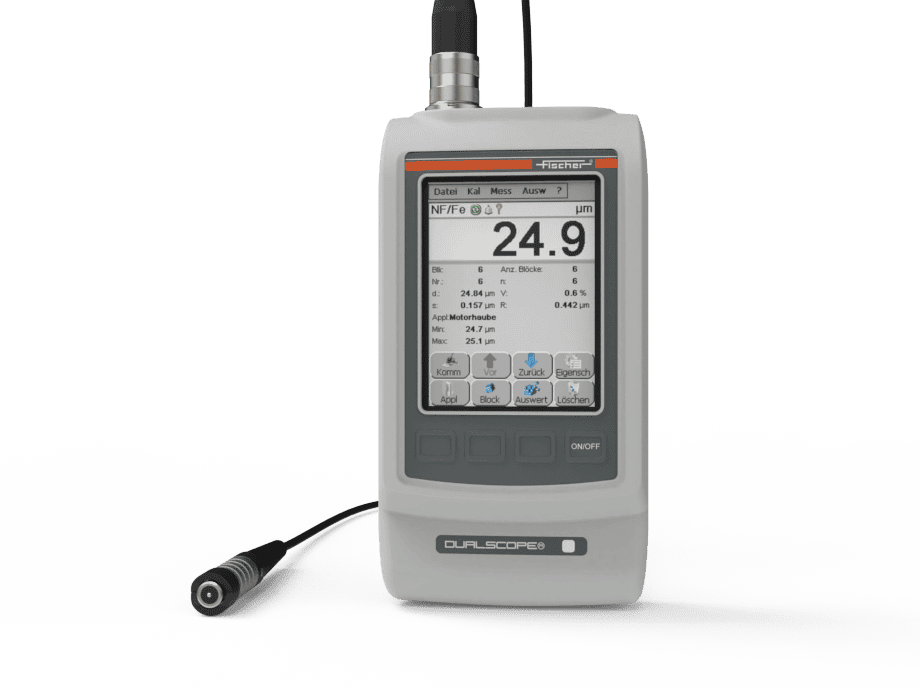

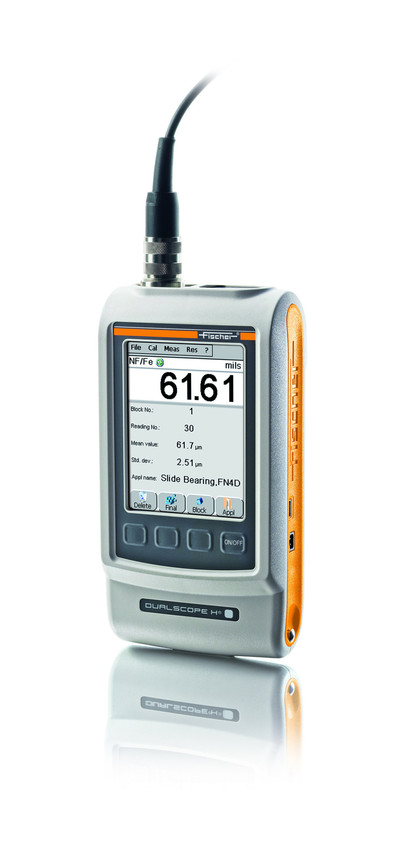

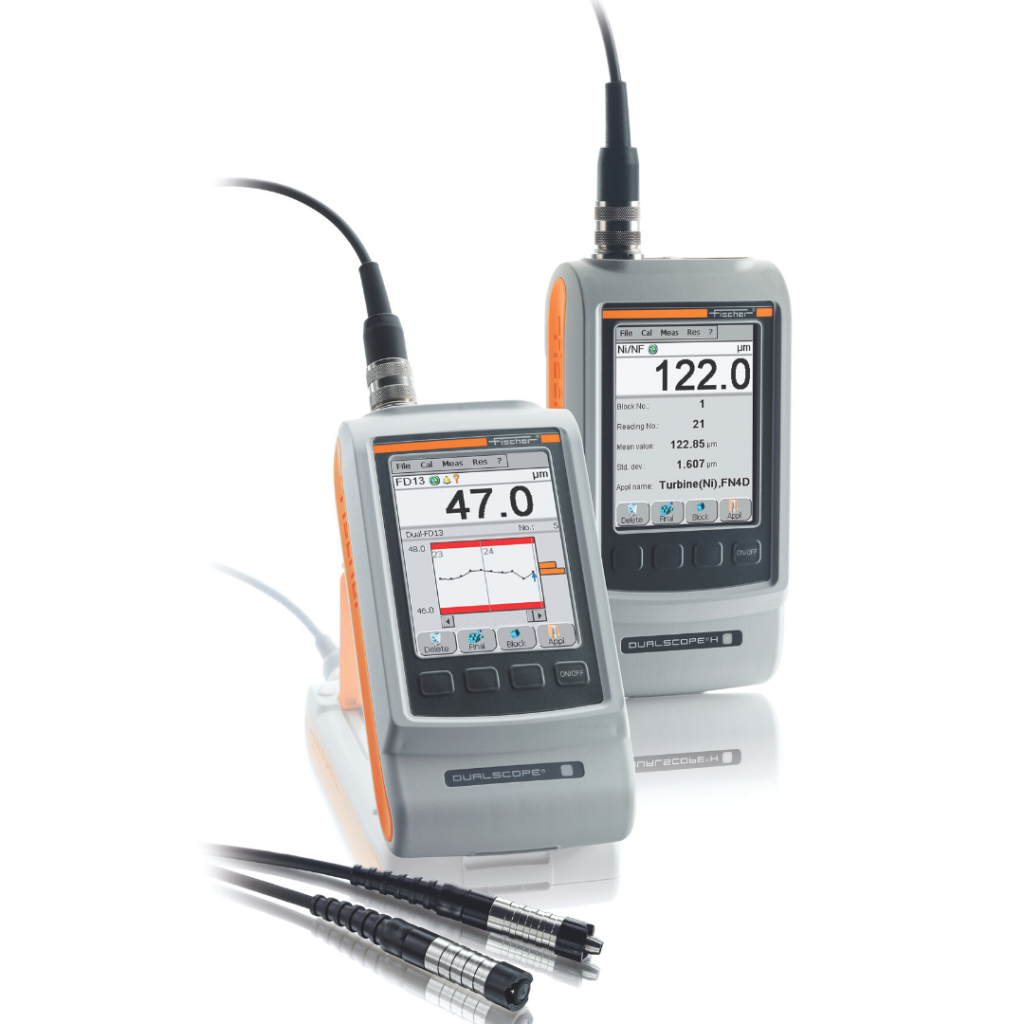

The powerful DUALSCOPE® FMP100 and DUALSCOPE® H FMP150 coating thickness gauges are specially engineered for the most demanding measuring tasks in quality assurance. The DUALSCOPE® FMP100 combines the magnetic inductive measuring method and the eddy current method in one device. This allows you to measure coating thicknesses on steel and coating thicknesses on non-ferrous metals without changing the measuring device. The DUALSCOPE® H FMP150 furthermore offers you the magnetic method.

  • Two in one.

Magnetic induction and eddy current method for highest flexibility (FMP100)

  • Inspection plans.

Step-by-step measurement guide to reduce user errors

  • Meeting all challenges.

Reliable and fast results for ambitious measurement tasks

  • Three in one.

Magnetic induction, magnetic and eddy current method for highest flexibility (FMP150)

  • Maximum flexibility.

Choose the right probe for your application

  • Easy to use.

Fast and simple operation thanks to intuitive menu

  • Automatic probe and base material detection
  • Measuring method: Magnetic induction method, eddy current method and magnetic method, depending on the device

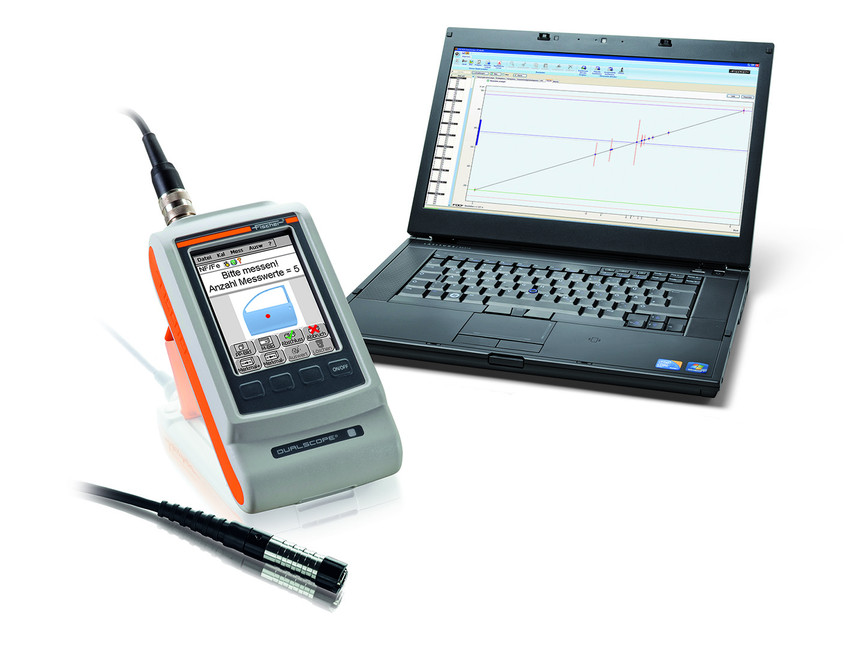

  • Simple data transfer via USB
  • Measured value memory: For a large number of measurements
  • Optionally available: Create individual test plans with additional, fee-based software license
  • High-resolution touchscreen display with virtual keyboard, operable with pen or finger
  • Limit value monitoring via sound
  • Measuring range: Dependent on coating-base material combination and probe used
  • Probes available for a wide range of applications
  • Non-magnetic coatings on iron and steel
  • Insulating layers on non-ferrous metals
  • Duplex coatings (paint/fire zinc) on steel in the area of heavy corrosion protection, whereby the paint and zinc coatings are measured in one measurement process and displayed separately
  • Thick metal and protective coatings on steel or iron (DUALSCOPE® H FMP150)
  • Nickel layers on non-ferrous metals or electrical insulators (DUALSCOPE® H FMP150)
