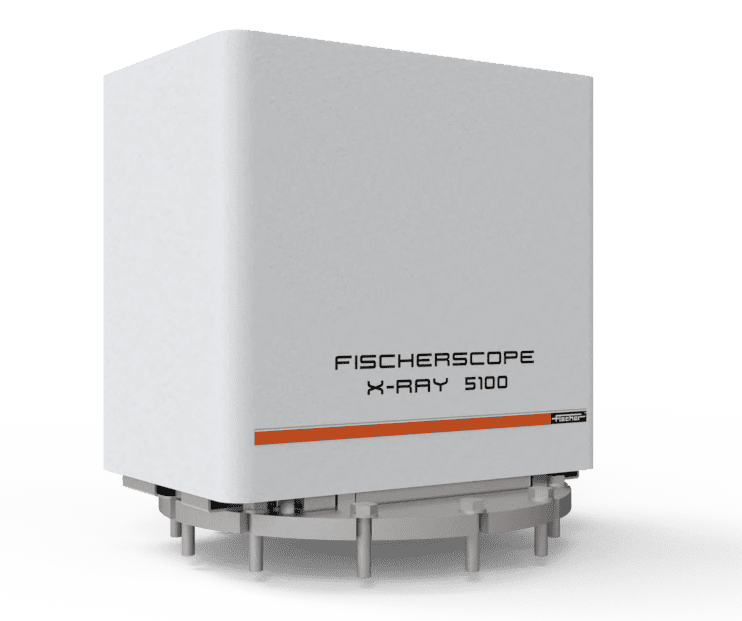

Helmut-Fischer FISCHERSCOPE® X-RAY 5000

Continuous and smart quality control.

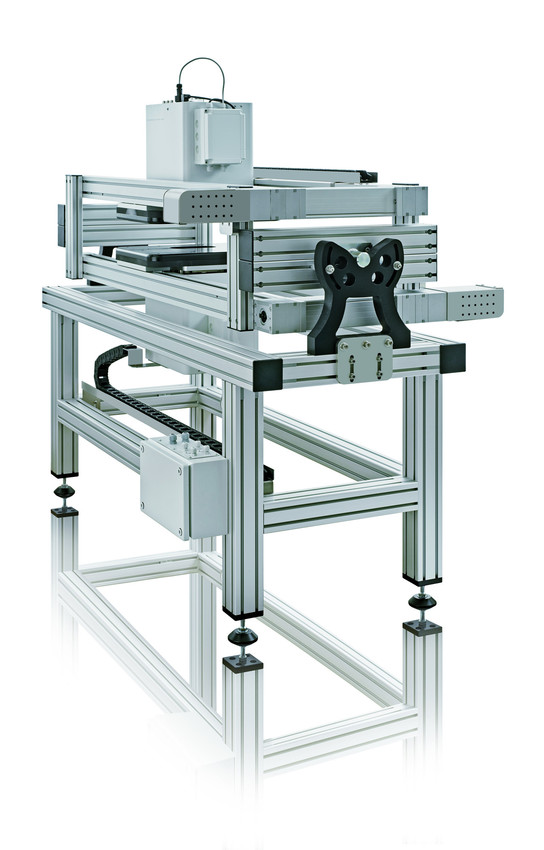

Designed for maximum uptime, the FISCHERSCOPE® X-RAY 5000 series is convincing with its high degree of customization and outstanding measurement performance – non-contact, non-destructive, and precise. The devices of this series form modular units, which is why they can be easily installed as pure components within an existing plant.

• • Tailor-made.

Easy integration, individually adaptable to your application

• • Does not break a sweat.

Sample temperatures up to 250 °C (482 °F) thanks to water cooling

• • DPP+ digital pulse processor.

Shorter measuring times or improvement of standard deviation*
*compared to the DPP

• • Robust and reliable.

No moving parts

• • Compact design.

Measuring head with all necessary components in one unit

• • Vacuum compatible.

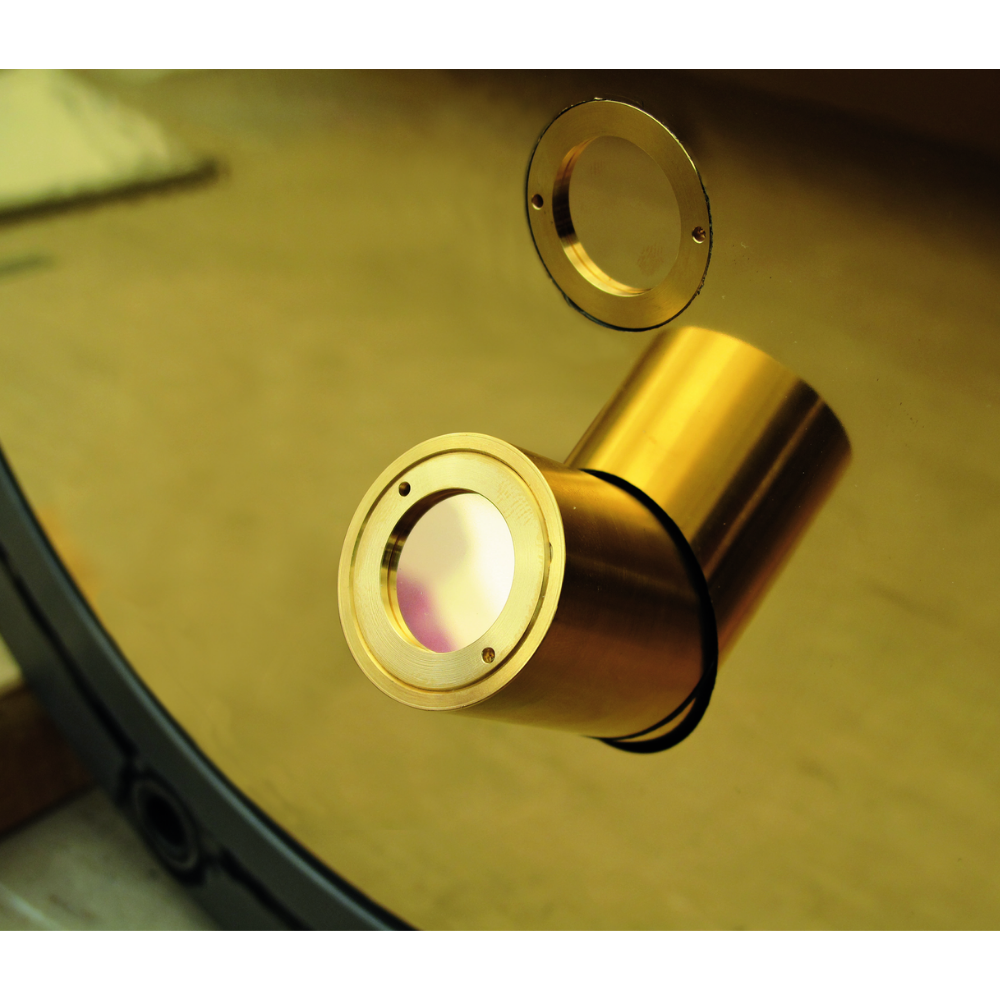

Can be mounted on vacuum chambers

• Microfocus tube with tungsten anode; molybdenum anode optional
• Fixed aperture (configurable up to Ø 11 mm)
• For measuring in vacuum or in the air
• Optionally with water cooling for sample temperatures up to 250 °C
• Silicon drift detector 50 mm² for highest precision
• Fixed filter (configurable)
• Peltier cooling
• Higher count rates and significantly reduced measurement times thanks to DPP+
• Any installation position possible
• Remote control and data export via TCP/IP interface

• Measuring thin coatings and low loadings on large-area products and substrates, such as fuel cells, on glass panels and very hot surfaces
• Monitoring the composition and thickness of layers in photovoltaics such as CIGS, CIS, CdTe and CdS
• Measuring thin layers of a few µm on metal strips, metal foils and plastic films
• Process monitoring of sputtering and electroplating equipment
