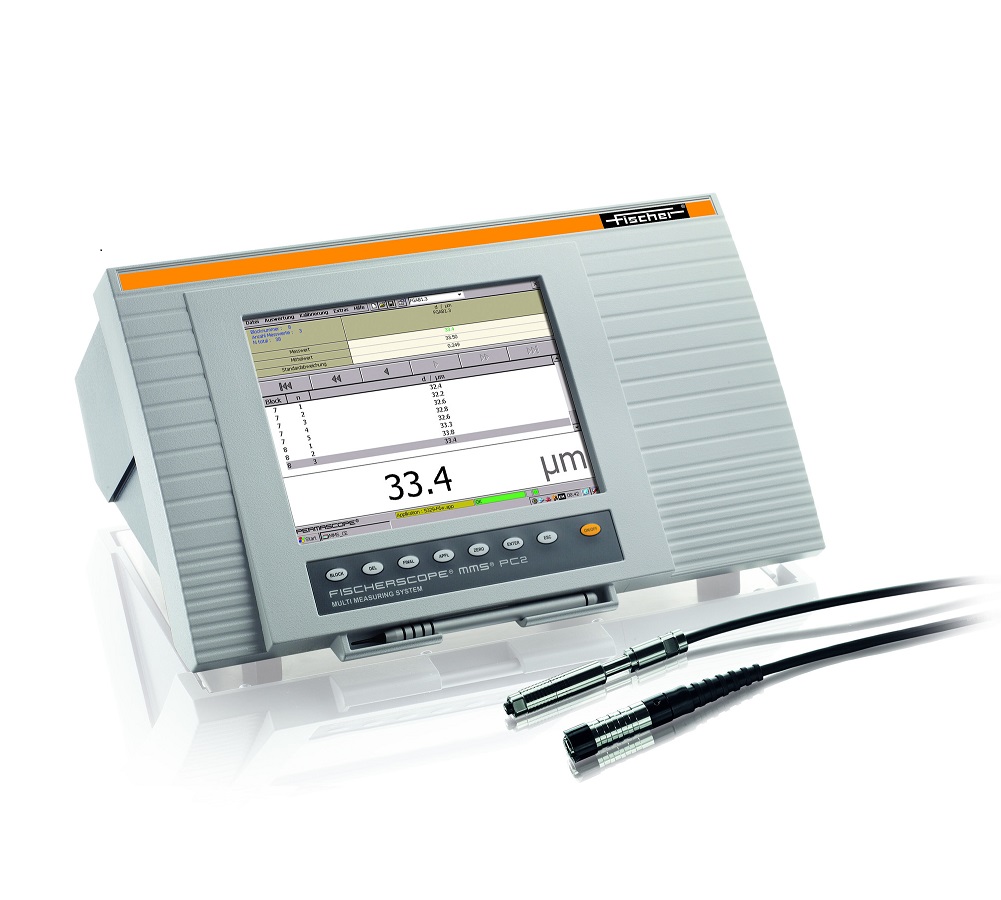

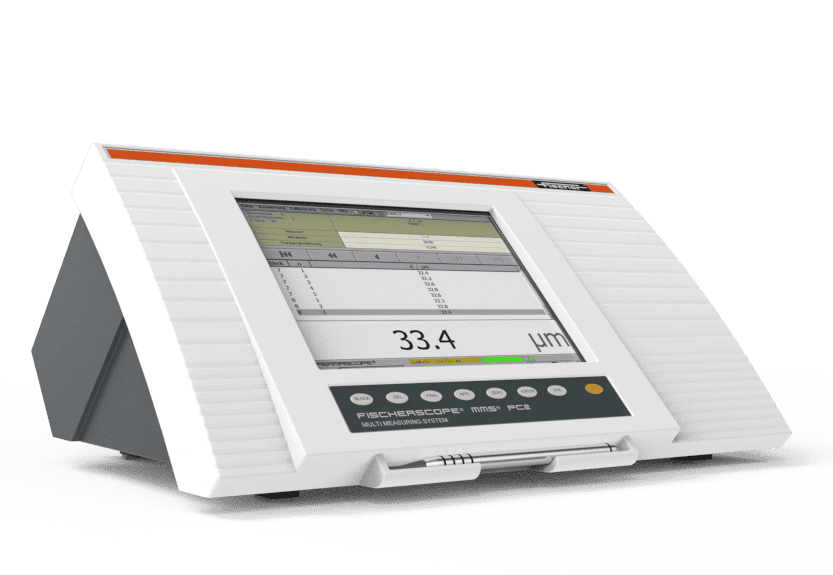

Helmut-Fischer FISCHERSCOPE® MMS® PC2

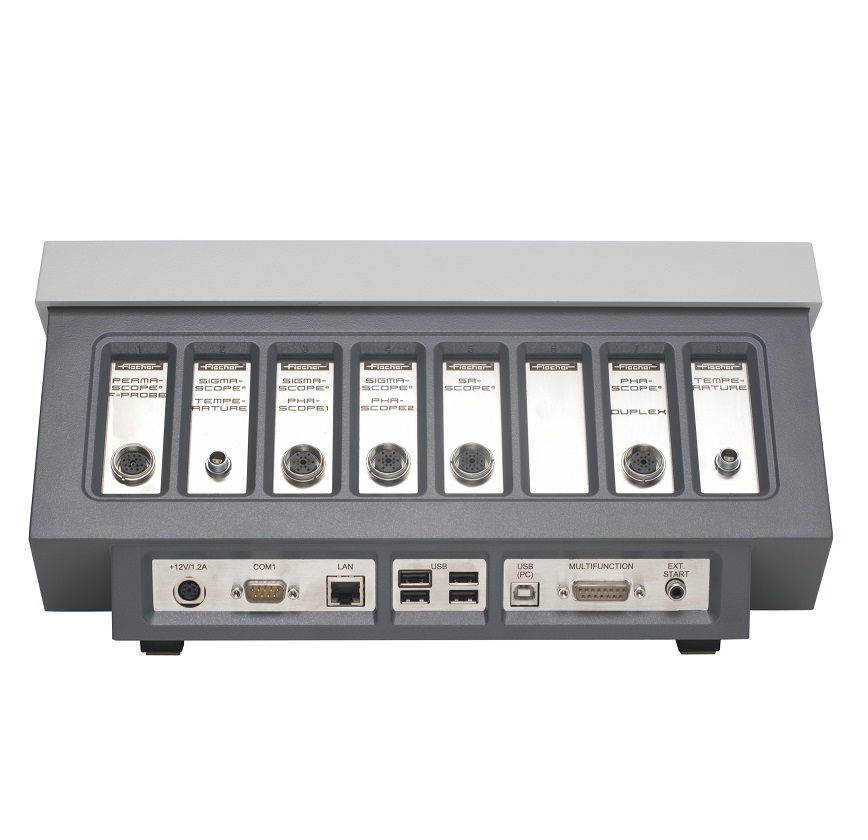

As an all-in-one measuring system, the FISCHERSCOPE® MMS® PC2 saves you time and money by eliminating the need for multiple specialized devices while streamlining your quality management processes. The modular design of the FISCHERSCOPE® MMS® PC2 allows for customization and expansion of the system – the variety of measuring methods, 6 in one device, makes it suitable for a wide range of applications and can be used both manually and automatically.

• One instrument, many possibilities.

Enables different test methods for coating thickness, conductivity and ferrite content

• Easy to use.

Simple device operation and graphically supported user guidance

• Individually configurable.

Adaptable to the applications of your industry

• Perfect fit.

Measure manually or semi-automatically; system adapts to your measuring and testing requirements

• Unique on the market.

Simultaneous evaluation with up to eight probes for maximum flexibility

PERMASCOPE®

The PERMASCOPE® is a versatile module for coating thickness measurement. It combines two measuring methods: the magnetic induction and eddy current methods.

Typical applications:

• Electrically insulating coatings on various metals, e. g. paint on steel or aluminum
• Electrically conductive, non-magnetizable layers on ferrous metals, such as zinc, copper or chromium on steel
• Weakly electrically conductive layers on highly conductive metals, e. g. chrome and electroless nickel on copper or aluminum
• Thickness of solder layer on copper in printed circuit board production
• Graphite layers on piston surfaces or corrosion protection layers on brake disks in the automotive sector
• Ferrite content in austenitic or duplex steels

SIGMASCOPE® / PHASCOPE®

The SIGMASCOPE® / PHASCOPE® determines the electrical conductivity of metals and can be used either for coating thickness measurement or for identifying non-ferrous metals.

Typical applications SIGMASCOPE® / PHASCOPE®1:

• Measuring copper layers on PCBs
• Testing of aluminum alloys in incoming goods
• Electrical conductivity of non-magnetic metals such as copper, aluminum, titanium
• Copper layers in printed circuit board holes
• Coatings of Cu, Zn, Ni on ferromagnetic base materials (steel or iron)

Typical applications SIGMASCOPE® / PHASCOPE®2:

• Copper layers in printed circuit board holes

PHASCOPE® DUPLEX

The PHASCOPE® DUPLEX was specially developed for the automotive industry to measure duplex coatings (paint and zinc on steel) in a single step. It uses three measuring methods: the magnetic inductive measuring method as well as the amplitude-sensitive and phase-sensitive eddy current method.

Typical applications:

• Paint on steel and aluminum
• Paint and zinc coatings (thin EPD coatings) on steel; both coatings are measured in one step
• Brake line hoses
• Wire (mesh and grid), such as for shopping carts

NICKELSCOPE®

The NICKELSCOPE® is based on the Hall effect and uses the different magnetizability of the coating and base material for coating thickness measurement.

Typical applications:

• Electroplated nickel layers on non-ferrous metals and insulating base materials
• Non-magnetic coatings such as copper, aluminum or lead on steel or iron
• Ferrous coatings on piston surfaces in the automotive sector

SR-SCOPE®

The SR-SCOPE® is a special module for the electronics industry. It uses the micro-resistance method and is suitable for measuring the thickness of individual copper layers on multilayer PCBs – without the influence of deeper layers.

Typical applications:

• Copper thickness on laminates or multilayers in PCB production

TEMPERATURE

The microresistivity measurement method used by the SR-SCOPE® is very temperature-dependent. To be on the safe side and obtain precise and reproducible measurement results, the temperature module is the ideal addition to the SR-SCOPE® module.
