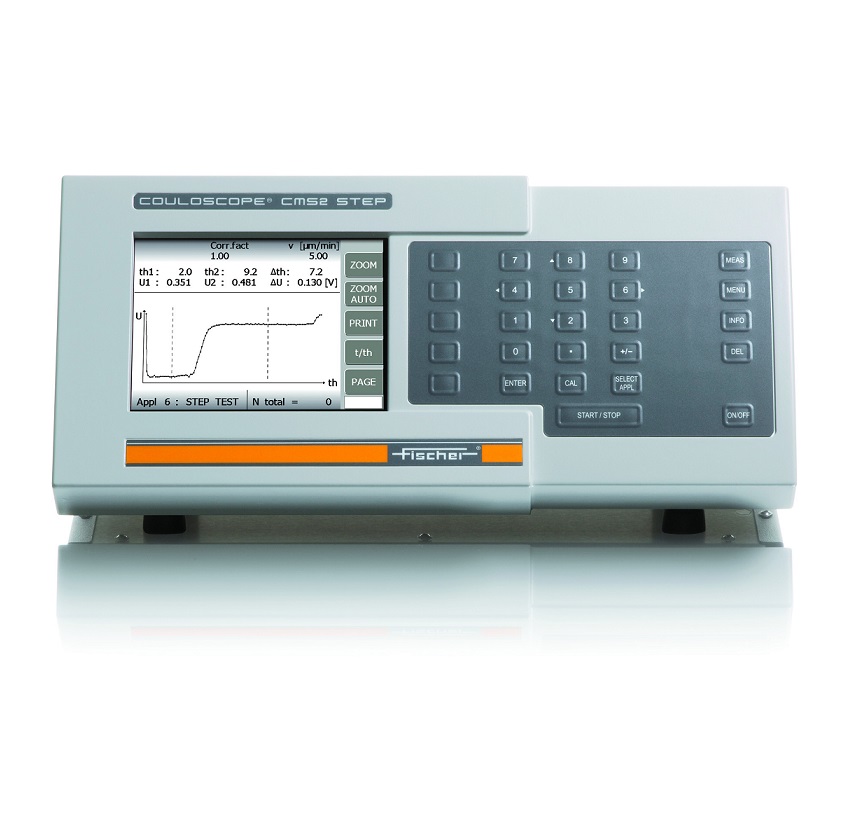

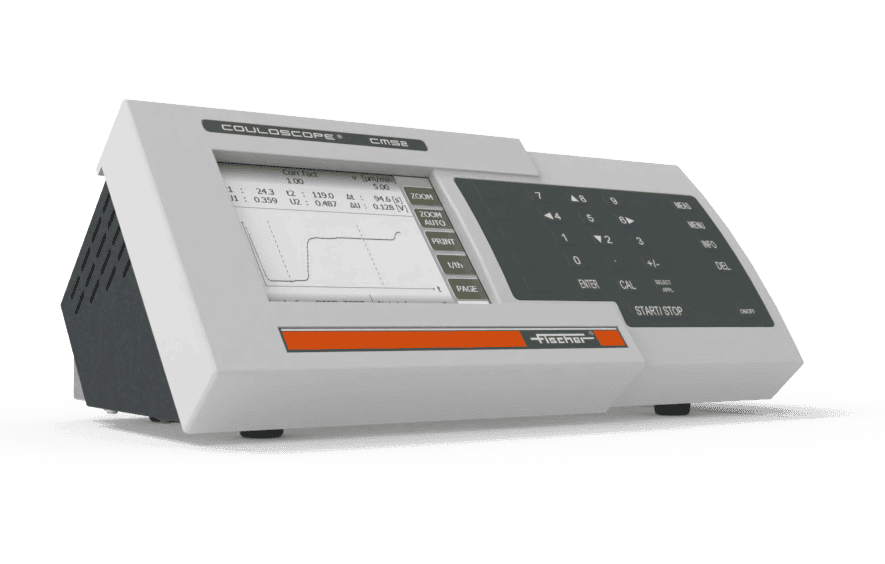

Benchtop instrument for measuring coating thicknesses and electrochemical potentials using the coulometric method.



Ask a question
Description Features Applications

Coulometric coating thickness measurement for quality control.

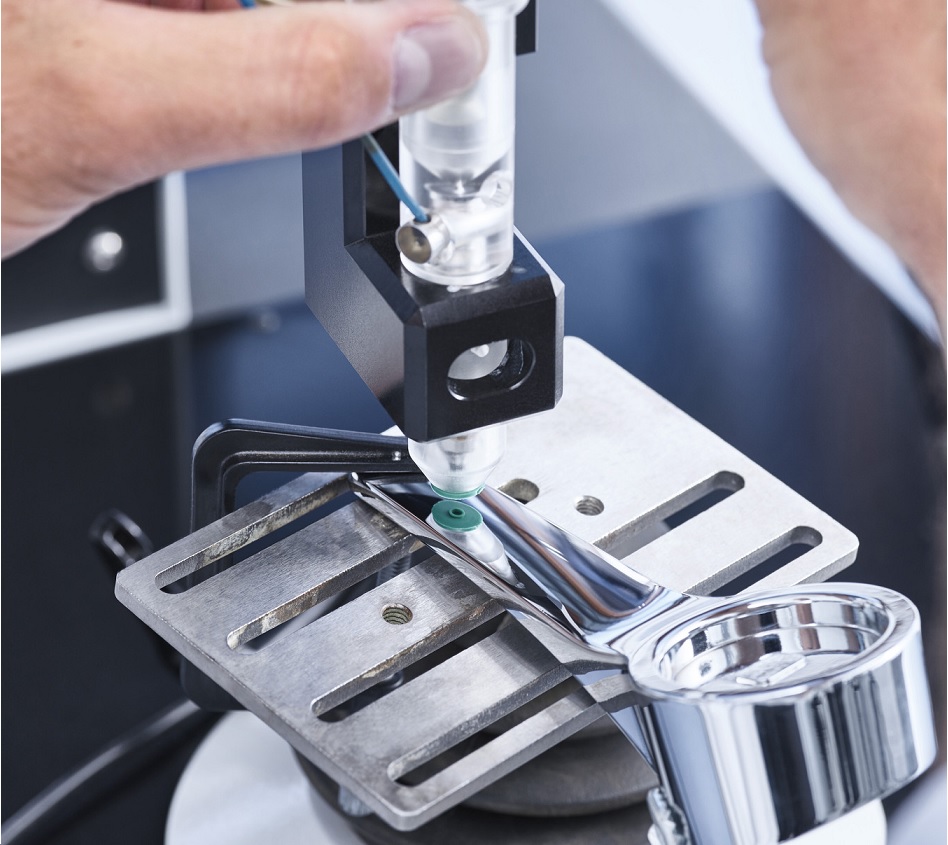

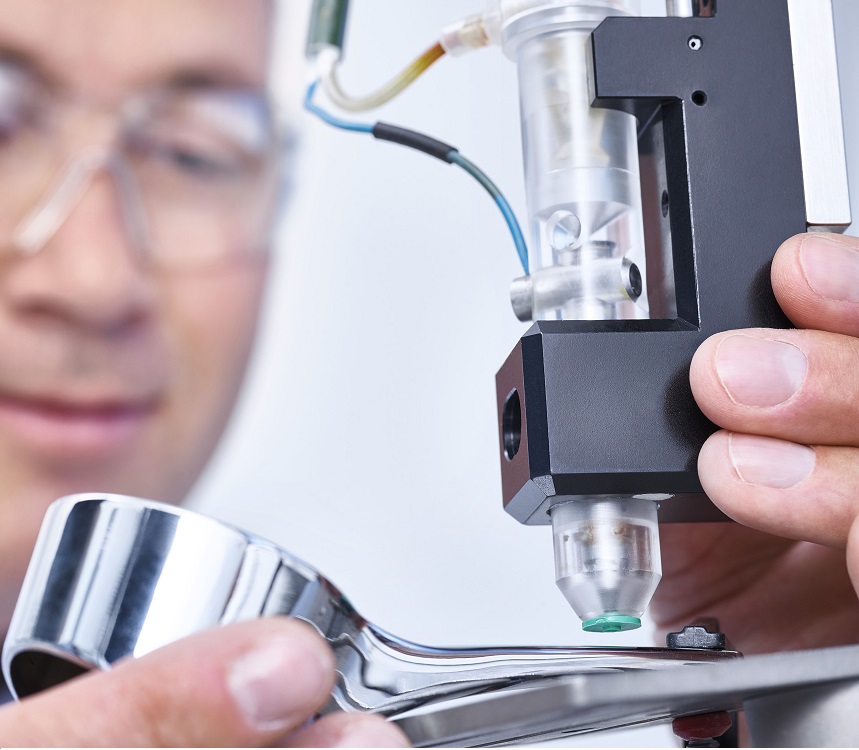

Above a certain coating thickness, using X-ray fluorescence to measure coating thicknesses non-destructively will reach its limits. This is where the COULOSCOPE® CMS2 comes into play. Use the coulometric method to measure the coating thickness of almost all metal coatings precisely and reliably by electrolytic layer detachment. Additionally, the STEP test method can be used to determine the thickness of different layers of coatings. These easy-to-use benchtop devices offer maximum flexibility, as they can be used for a wide range of coating-substrate combinations.

  • Optimal measurement concept.

Predefined measurement tasks for different coating systems

  • Easy calibration.

Achieve the highest level of accuracy

  • Individually expandable.

Extensive accessories enable practical work and safe storage

  • Intuitive operation.

Color display and graphically supported user guidance

  • Maximum flexibility.

Exact coating thickness measurement of almost any coating-substrate-combination

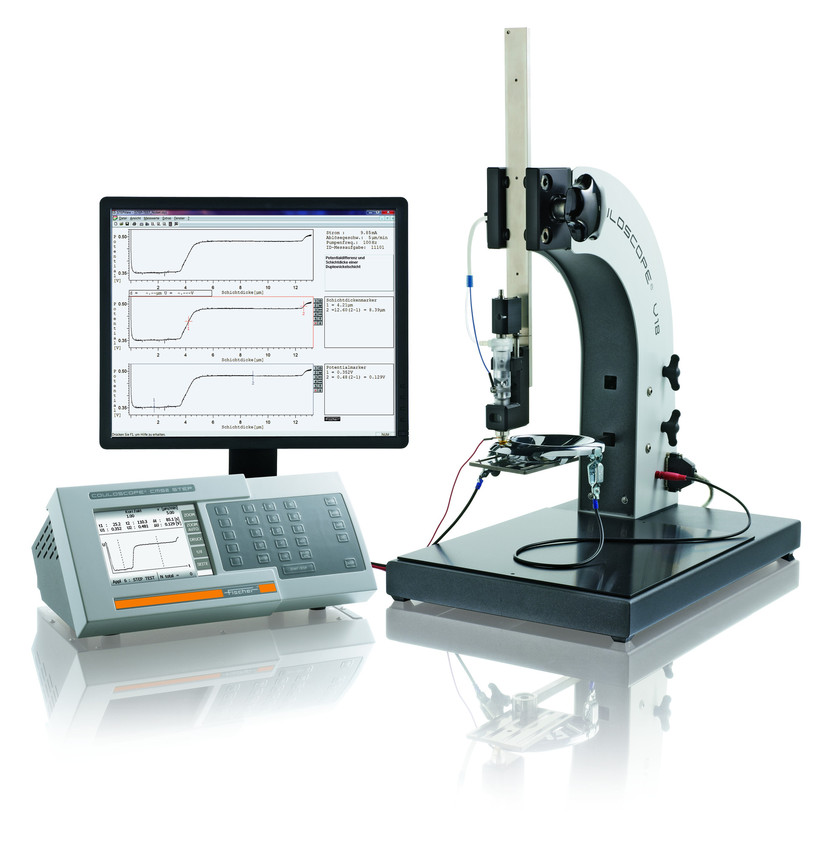

  • Graphic representation of the voltage curve at the measuring cell
  • Almost 100 predefined measuring tasks for different coating systems (such as zinc on iron or nickel on brass)
  • Deplating the coating according to DIN EN ISO 2177
  • Simple data transfer via USB interface
  • Measuring range: Depending on the coating-base material combination and the removal speed 0.02 – 50 µm
  • Measured value memory: 3,000 in 50 applications\
  • Functions for STEP test measurement in accordance with ASTM B764 – 04 and DIN EN 16866
  • Simple selection of the detachment speed (0.1 – 50 µm/min) and the detachment area (0.6 – 3.2 mm Ø)
  • Measuring method: Coulometry by anodic stripping
  • Measuring the coating thickness of almost all metallic single and multilayer coatings on almost any base material
  • Quality control of electroplated coatings
  • Monitoring the residual tin layer thickness on PCBs
  • STEP test measurement: measuring single layer thicknesses and potential differences in multiple nickel layers on copper, iron, aluminum or plastic substrates (ABS)
