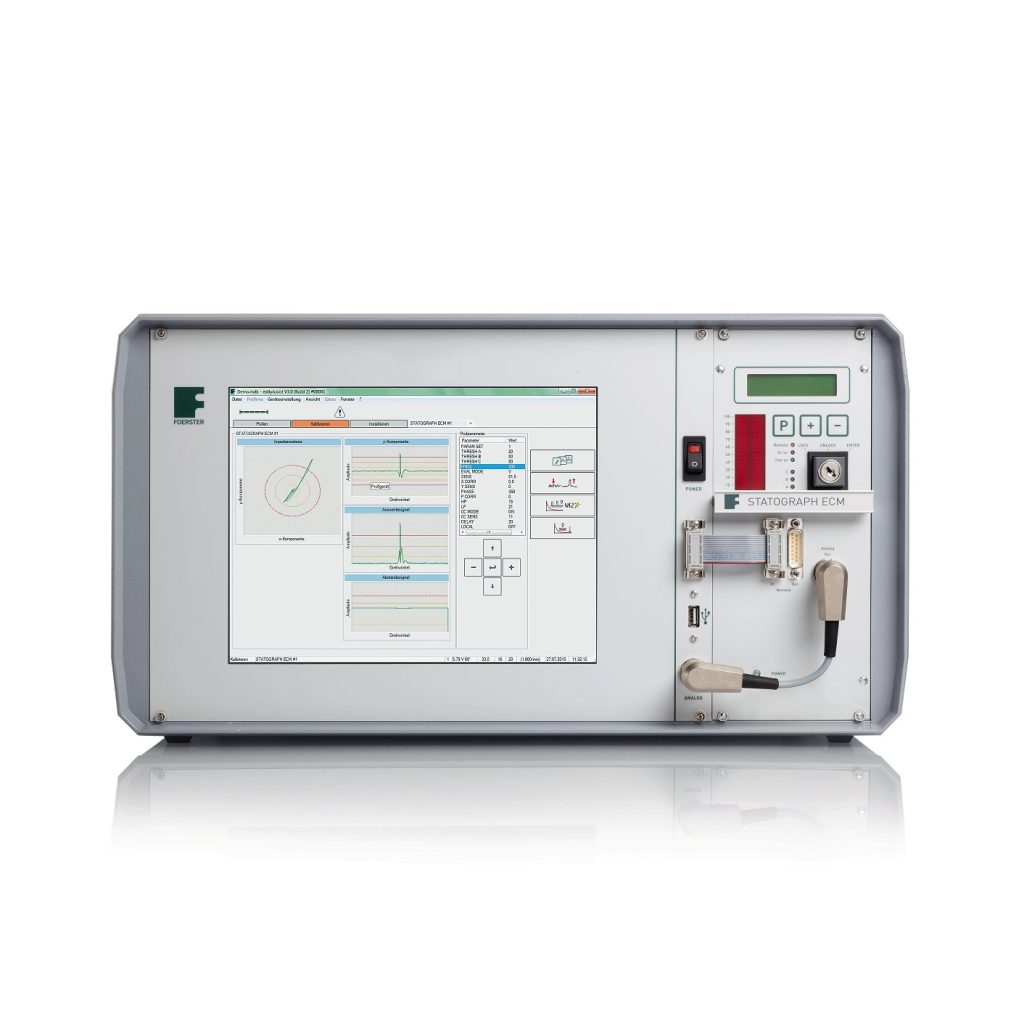

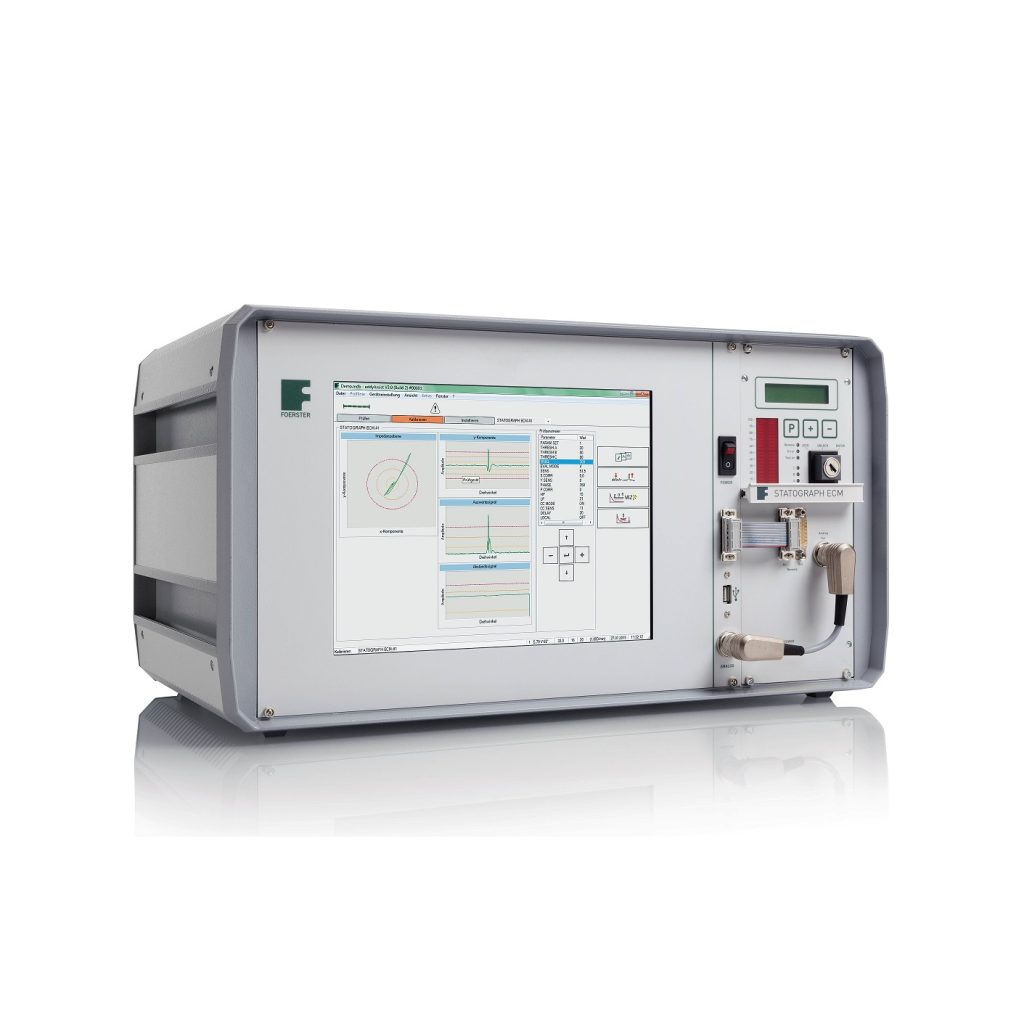

The STATOGRAPH ECM CE combines all of the components required for crack testing in one compact unit: test instrument, panel PC with touchscreen, eddyAssist operating software, and required accessories. The whole system comes fully configured and installed. The test results are shown as color graphs on a TFT display. The instrument settings can also be saved at any time and all test results logged.
| Excitation frequency: | 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz, can be selected with plug-in module |
| Sensor: | Differential or absolute sensor |
| High-pass, low-pass filter: | 1 Hz to 16 kHz, 25 levels |
| Analysis type: | Complex plane analysis
Phase-selective component analysis (optional) Clearance compensation (optional) |
| Test instrument: | STATOGRAPH® ECM |
| Module with: | test instrument, panel PC with touchsceen and eddyAssist application software |
| Table housing: | 6HE |
